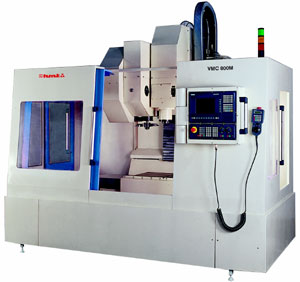

Contact SupplierBed type machine configuration,Preloaded linear recirculating guideway system,AC Spindle motor,AC Servomotors for feed drive of all axes.Guideway protection through telescopic coversbellow covers.Cam driven high speed armless auto tool changer.External coolant,Head counter balance
Table size | mm | 860 x 460 |
Traverses X, Y & Z axes | mm | 760 x 500 x 450 |
Rapid rate | m/min | 12 (standard), 20/32 (optional) |
Positioning accuracy | mm | ± 0.005 |
Repeatability | mm | ± 0.003 |
Spindle taper | BT-40/ISO 40 | |
Spindle speed | rpm | 60-6000, 60-8000 |
Spindle power | kW | 5.7 / 7.5 |
ATC Capacity | 12 / 20 | |
Max. tool weight | kg | 8 |
Max. tool dia. | mm | 80, 125 (alternate pocket empty) |
Tool change time | sec | 10 |
CNC System | Fanuc/Siemens |
