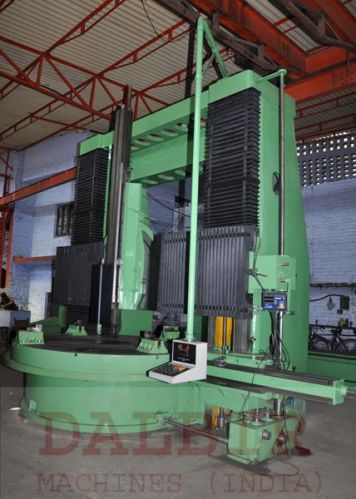

Vertical Lathe Machine

Listing ID #1165750

Get Latest Price

Supply Type Supplier
Preferred Buyer Location All over the world

Our company has received wide appreciation in manufacturing, exporting and supplying an enormous range of Vertical Lathe Machine in India. Lathe machine that we provide is fabricated as per the....

View More Details

Send Enquiry

Product Details

Our company has received wide appreciation in manufacturing, exporting and supplying an enormous range of Vertical Lathe Machine in India. Lathe machine that we provide is fabricated as per the international quality standards. We provide Lathe machine with different technical specifications to meet the varied requirement of buyers. Our Lathe Machine is highly durable in nature due to its strong and sturdy construction. We provide Vertical Lathe Machine at nominal price.

Standard Accessories :

One Ram Head on Cross Rail
4 Jaw Chuck
Automatic Lifting & Lowering of Cross Rail
Lubrication System on All Sliding Ways
Centralized Control Station With Interlocked Electrical Control Pannel
A Set of Service Tools

Special Accessories :

Additional Ram Head On Cross Rail
Turret Head On Cross Rail
Threading Head On Cross Rail
Side Ram Head
Milling Attachment
Coolant System
Slotting Attachement On Cross Rail
Anti-Friction Material Coating On Sliding Surfaces
Dro System

Specifications

Particulars	UNIT	DLBVT-1.0	DLBVT-1.2	DLBVT-1.5	DLBVT-2	DLBVT-2.5	DLBVT-3	DLBVT-4	DLBVT-5	DLBVT-6
Table Diameter Max. Turning Dia with	mm	1000	1200	1500	2000	2500	3000	4000	5000	6000
Side head below the table top	mm	1260	1600	1750	2250	2750	3500	4500	5500	6500
Max. Turning Dia with Side head in working position	mm	1100	1500	1700	2500	2800	3500	4500	5500	6500
Max. working height under cross rail	mm	1000	1200	1200	1700	1700	2200	2200	2500	2500
Vertical Travel of Ram Head	mm	500	600	600	700	800	900	1000	1000	1000
Swivel Angle of Ram Head	30"	45	45	45	45	45	45	45	45	45
Horizontal Travel of Side Head	mm	600	600	600	700	800	900	1000	1000	1000
Max. Vertical Travel of Side Head	mm	1000	1000	950	1250	1250	1750	1750	2000	2000
Table Speeds	RPM	10-100	9-90	8.5-85	5-50	2-20	1.5-15	1.5-15	1-10	1-10
Feeds, Horizontal & Vertical	No.	6	6	6	6	6	6	6	6	6
Range	mm/min	0.3-2.3	0.3-2.3	0.3-2.3	1-6.5	1-6.5	1-6.5	1-6.5	1-6.5	1-6.5
Main Motor	H.P.	15	15	20	25	30	40	40	50	60
Approx Weith Of Machine	M.T.	12	13.5	15	21	25	35	45	55	70

Company Details

DALBIR MACHINES (INDIA) unit was started in 1964 by S. Dalbir singh ji who has got a machinery mind , initially it was started as a ancillary unit , with continuous hardwork and dedication towards quality work and quality products unit has grown much , it has got two sister concerns DALBIR MACHINERY MAKERS and MASSY INDUSTRIES , now has got very experienced professionals and good infrastructure , our products are accepted by many industrial segments . many of our products are exported through our dealers network . Building relationship with our quality & dedicated services is always on the top of our Company's agenda and this has established ourselves as leading manufacturers & exporters of Lathe Machines, Double Chuck Lathe Machine, Vertical Turning Lathe, Plano Miller, Planing Machine, Horizontal Boring Machine. Shaping machines , Our Group of engineers with decades of expertise in machine tools has led to a massive growth of our company around the Globe.
The philosophy of DALBIR MACHINES (INDIA) is to manufacture good quality of machines at economical range and technically suitable machines for total satisfaction of customer. We are a value driven customer focused company as we are having special experts and experienced people to provide technical solutions to machining problems and also suggest suitable machine.
Our customers are wide spread in India and abroad and we have grown by providing them reliable & performance oriented machines. Training, application support, efficient & prompt after sales support are our strengths.
Our organization stands on the pillars of innovation and quality. Our vision is to serve our customers with dedication and offer specialized services with quality assurance. We are a quality driven organization and contend to render quality services and products to our clients.
As a part of our constant endeavor to offer our customers enhanced services and value for our products, we keep ourselves updating with new developments and competitive prices with a strict policy of 'no compromise in quality'.
Backed with valuable support & belief of our worldwide long-term customers, we encouraged ourselves to diversify our product range to support our much valued customers for 'single source' for all your machining needs.
