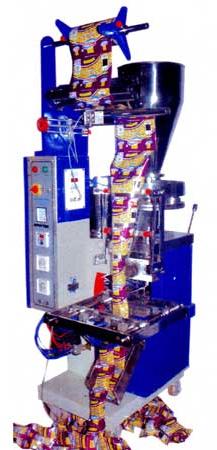

Vertical Form Fill & Seal Machine

Listing ID #1356410

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

Our company is topmost supplier of Vertical Form Fill & Seal Machine. It is automatic in mode and also user friendly. The packing machines such as automatic vertical form fill & seal machine, we....

View More Details

Send Enquiry

Product Details

Our company is topmost supplier of Vertical Form Fill & Seal Machine. It is automatic in mode and also user friendly. The packing machines such as automatic vertical form fill & seal machine, we produce are versatile in application as they can be used for packing all kinds of goods. It is very popular with the customers for its strong packing manuals. These are available with electronic batch coding device that helps in detecting facts printed on the goods. We are the most dependable vertical form fill & seal machine manufacturer and exporters from India.

Automatic Vertical Form Fill & Seal Machine

Model No. AIP/F/50 (Powder, Granules) Cup Filler
- Applications
  - Tablets
  - Panmasala
  - Jaljira
  - Cereals
  - Coffee Powder
  - Tea
  - Detergents
  - Pharmaceutical Powder
  - Namkeen
  - Henna, etc
- Packaging Range : 1Gm-500Gm
Model No. AIP/F/60 (Liquid, Paste) Piston Filler
- Applications
  - Shampoo
  - Vaseline
  - Creams
  - Lotions
  - Tomato Ketchup
  - Sauces
  - Pastes
  - Honey
  - Liquid Soap, etc.
- Packaging Range : 1Ml-200Ml
Model No. AIP/F/80 (Sticky Powder, Grains) Auger Filler
- Applications
  - Milk Powder
  - Custard Powder
  - Besan
  - Maida
  - Phanna Powder etc.
- Packaging Range : Up to 500 Gm
Model No. AIP/F/70 (Irregular Solids) Bucket Conveyor
- Applications
  - Irregular Cubical
  - Cylindrical shaped solid products
- Packaging Range : 1 Unit (Or More)

Technical Specifications

Product Application	Granules, Powder, Paste, Liquid
Sealing Type	3 Side / 4 Side / Center Seal
Packing Size	Width: 20 -160 mm or 20 -220 mm Length: 40 -120 mm or 100 -240 mm
Feeding System	Auger Filler / Weigh Filler / Piston Filler / Volumetric Cup Filler
Speed	40-75 Pouch/Min (Depends on Material to pack)
Main Motor	½ HP, 220 V, 50 Hz, Single Phase
Heater Load	150 W x 2 Nos., 300 W x 2 Nos. (For 3 side or center Seal), 300 W x 4 Nos. (for 4 side Seal)
Laminate	Any Heat Sealable Laminate
Contact Parts	Food Grade Stainless Steel SS 316 / SS 304
Power Consumption	2 KW
Machine Dimension	L (750) x W (560) x H (1750) mm
Net Weight	380-500 Kgs (Approx.)
Optional Attachments (At an extra cost)	Electronic Batch Coding Device, Nitrogen Flushing Device

Salient Features

Features	Advantages	Benefits
Operator Friendly / Low	Easy to Operate / Less Servicing	Very Low Down
Maintenance Machine	Required	Time / Increased Productivity
Wide product application range	Versatile (Liquid, Powder, Grains, Paste)	Multi Purpose
Customization (as per products)	Wide dozing system options	Can be used for various products thus giving full Utility
Machine is Elegant, Castor Mounted.	Looks appealing, Easy to Install and move	Less labor is required for displacement
Food Grade Stainless steel Contact parts	No rusting	Long Life, Hygienic Packing
Photo Registration Control system	Automatic adjustment and correction of Pouch sealing	Savings on wastage
Electronic Batch Coding Device(at an extra cost)	To Print M.R.P, Month of Packing, Lot No. etc	Helps In Detecting Manufacturing and Expiry Date
Nitrogen Flushing Device	Increased shelf life	Savings on expiry, rejection
On Line Adjustable Disc (Subject to requirement)	To Correct Weight variation (Due to variation in Lot characteristics)	Accurate quantity per Pouch is ensured
