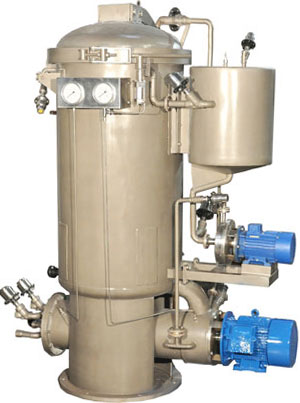

Vertical dyeing machine

Listing ID #1578987

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Salient Features • Airpad dyeing system helps keeping low liquor ratio from 1:4 to 1:7compared to fully flooded system. It leads to saving of water, dyestuff, chemical and heat....

View More Details

Send Enquiry

Product Details

Salient Features

•

Airpad dyeing system helps keeping low liquor ratio from 1:4 to 1:7compared to fully flooded system. It leads to saving of water, dyestuff, chemical and heat energy.

•

Coil type heat exchanger made out of high grade seamless tubes for high heat transfer efficiency.

•

In addition to spring loaded safety valve, the machine is equipped with an additional pressure switch to release pressure if it exceeds set limit for utmost safety.

•

There is no need to rotate the lid on main vessel to lock the machine but outside ring clamps the lid with vessel for locking. As there is no rubbing of lid, lipseal life increases.

•

Option of various type of carriers for fibre, hank, muffs, tops & beams.

•

Control panel is fabricated form stainless steel for longer life.

•

Modular design. Two machines of same capacity canbe coupled to increase batch size.

Applications

•	Yarn Packages.
•	Small Width Fabrics.
•	Zipper Tapes.
•	Warp Beams.
•	Loose Fiber.
•	Yarn Hanks.
•	Muffs & Tops.

Model	Vessel Dia. MM	Capacity * Kgs	Pump KW	Carrier Detail			Work Space (Meters)
Model	Vessel Dia. MM	Capacity * Kgs	Pump KW	No. Of Spindles	Pack/Spindles	Total Packages	Length	Width	Height	Max. Height
BMVD 015	500	18	3.7	3	4	12	1.5	1.2	1.2	2.25
BMVD 025	500	27	3.7	3	6	18	1.5	1.2	1.5	2.5
BMVD 050	600	60	5.5	5	8	40	1.7	1.5	2.0	3.5
BMVD 100	700	105	9.3	7	10	70	2.0	1.5	2.3	4.5
BMVD 150	900	156	11	13	8	104	2.2	1.75	2.0	4.0
BMVD 200	900	215	15	13	11	143	2.2	1.75	2.4	4.5
BMVD 250	1000	270	18.5	18	10	180	2.5	2.0	2.3	4.5
BMVD 300	1000	324	22	18	12	216	2.5	2.0	2.3	5.0
BMVD 400	1250	420	30	28	10	280	3.0	2.5	2.75	4.5
BMVD 500	1250	504	37	28	12	336	3.0	2.5	3.0	5.0
BMVD 600	1400	630	37	35	12	420	3.5	3.0	3.2	5.2
BMVD 700	1400	735	44	35	14	490	3.5	3.0	3.5	5.5
