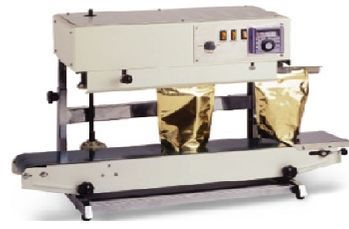

Vertical Band Sealers

Listing ID #3825049

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Vertical Band sealer is used to seal thermoplastic bags of any size, length and thickness up to 500 micron. The sealing width is adjustable up to 10 mm.The sealing process is the same as the....

View More Details

Send Enquiry

Product Details

Vertical Band sealer is used to seal thermoplastic bags of any size, length and thickness up to 500 micron. The sealing width is adjustable up to 10 mm.The sealing process is the same as the horizontal band sealer which requires the operator to feed the pouch between two rotating rollers on one side of the machine. The pouch is then automatically guided through two heated brass jaws followed by a cooling zone and then finally passes through the embossing rollers which provide a dotted impression on the seal. The filled pouch rests on a motorized conveyor belt. The heat and the conveyor speed is adjustable using a thermostat and a pot. Band sealers are ideal for medium to large scale production where sealing speed is a major factor. These machines are used to seal a variety of products such as Coffee, Chemicals, Spices, Soaps, Sauces, Snacks, Cookies, Chocolates, Cereals, Dyes, Grains, Pet Food, Pastas, Pastries, Flour, Parts, Vegetables etc.

Technical Specification:
Model	Power (V)	Sealing Speed (m/min)	Sealing Width (mm)	Temperature (C)	No. of lids in Motor	Conveyor Size (LxW) (mm)	Film Thickness (mm)	Relay Type	Conveyor Loading (Kgs)	Dimensions (LxWxH) (mm)	Weight (Kgs)
ECS900V	220V A/C	0-12	5-10	0-300	2	940x153	0.08	Box Type	3	840x380x550	33
CS900V	220V A/C	0-12	5-10	0-300	4	950x153	0.08	Transparent Plastic Type	3	850x380x550	37

Company Details

We have been catering to clients looking for quality packaging machines at pocket friendly prices! Our product profile covers both Packaging Machines & Packaging Materials.
We specialize in End-Of-Line Packaging Systems & allied Machines such as:
• Hand Sealers
• Hot Bar Sealers
• Pedal Sealers
• Foil Sealer Machine
• Bag Closer Machine
• Band Sealers
• Cup & Meal Tray Sealer
• Box Strapping Machine
• Shrink Tunnel
• L - Sealer
• Shrink Chamber
• PP Cap Closing Machine
• Batch Coding Machine
• Cling Film Wrapping Machine
• Electromagnetic Induction Capper
• Material Handling Equipment
We continuously strive to be updated on technology. We are highly motivated individuals who love to innovate. What is evidently unique about our company is the kind after sales service we provide. Whether your machine needs routine service or emergency repair, you can trust our team of experts.
We along with our skilled professionals and more than 1000 actual users, power Shivam's packaging capabilities in being a leader in packaging machines and products. Shivam Industries is now a modest manufacturer and supplier of impulse sealers and other machines in India.
We also manufacture customized packaging machines. Kindly fill in the details and get connected with us.
