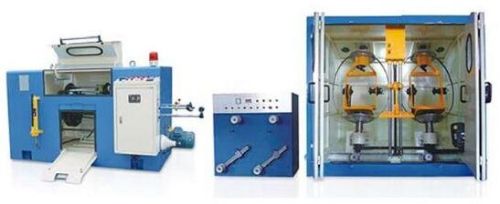

Vertical Back Twist Buncher Double Bobbin With Takeup

Listing ID #7025366

Get Latest Price

ApplicationFor bunching of back twisted pair for LAN cables.
Machine DimensionL x W x H (2100x1300x2000)
Bobbin Weight<250kg ; Wire pay-off tension 3-10 N
Pay-off Bobbin SizeÐ¤500(OD) X Ð¤56(ID) X 300mm Traverse
Supply Type Manufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Application For bunching of back twisted pair for LAN cables.
Main Motor 3.7kw
Machine Dimension L x W x H (2100x1300x2000)
Pay-Off Device In-Line tension sensor stand linked with pay-off motor ensuring constant tension of wire
Max Rotation Speed 1000rpm
Total Weight 2200kg
Machine Model PRV-BT-V-500
Pay-off Bobbin Size Ð¤500(OD) X Ð¤56(ID) X 300mm Traverse
Bobbin Weight <250kg ; Wire pay-off tension 3-10 N
Take-up Bobbin Size Ð¤500 X 320mm traverse
Back-Twist Tension Stand vertical double head, tension wheel 120mm,3+4 grooves, precision potentiometer
Main Motor 3.7 kw
Tension Range 200g, stable and adjustable
Back twist Ratio 90% Stepless Adjustable
