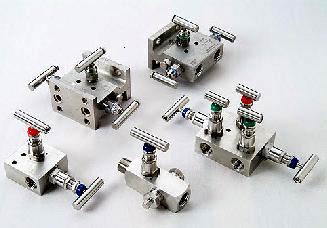

SS316 Manifold Valve, Certification : ISO 9001:2008 Certified

Listing ID #1762462

We expertise in manufacturing and supplying a wide variety of Manifold Valves as per the international quality standards. Our range of manifold valves includes 2 way and 3 way manifold valves. Made with stainless steel, carbon steel and duplex stainless steel materials, manifold valves are easy to install and maintain. We offer manifold valves in various dimensions and specifications. These valves find their application in various industries like chemical, petrochemical, oil etc., and can be customized as per the need of the bulk buyers.
2-Valve Manifold : 2 -Valve Manifolds offer safety and reliability in a general purpose design. The simple 2- Valve Configuration allows for easy block, bleed and calibration of a static pressure transmitter or gauge. Valves are available with either metal seats or replaceable soft seat inserts. Connections are 1/2 female NPT on all three ports.
Our 2 Way Manifold Valve Available as Follows

• 2 Valve Manifold -H Type
• 2 Valve Manifold - T Type
• 2 Valve Manifold - R Type

Specifications

• Connection : 1/2" Female NPT to 1/2" Female NPT
• One-piece, high strength body construction for safety no welding used.
• Stems feature an non-rotating top with an easily replaceable soft insert.
• Bonnet lock pin prevents accidental valve disassembly.
• 316 stainless steel constructions for superior corrosion resistance.
• Bonnet-to-body seals are metal-to-metal-no O-Rings used.
• Mounting holes provided for self supporting applications.
• 100% pressure tested for shut-off and at all seals.
• Manifolds feature at 4:1 safety factor.

3-Valve Manifold : The Saluji Pipe to Pipe 3-Valve Manifold is a general purpose design for connection system impulse lines and transmitters. This manifold consists of two block Valves and an equalizer valve. Connection are 1/2" Female NPT on 2-1/8" (54mm) centers for safety, an bonnet lock pin is standard.
Our 3 Way Manifold Valve Available as Follows

• 3 Valve Manifold -H Type
• 3 Valve Manifold - T Type
• 3 Valve Manifold - R Type

Specifications

• Connection : 1/2" Female NPT to 1/2" Female NPT.
• One-piece, high strength body construction for safety no welding used.
• 316 stainless steel construction for superior corrosion resistance.
• Bonnet lock pin prevents accidental valve disassembly.
• 2-1/8" (54mm) Port centerline dimension for proper alignment.
• 100% pressure tested for shut-off and at all seals.
• Manifolds feature at 4:1 safety factor.

4-Valve Manifold : 5-Valve Manifold offer two mainline block valves and a double block and bleed valve for the equalizer line. The manifold is primarily intended for gas service and is used to connect differential pressure transmitters to system flow meters. Connections are 1/2" Female NPT on 2-1/8" (54mm) centers Standard feature include two 1/4" NPT static pressure connections on the instrument side and one 1/4" NPT vent connection from the bleed valve.
Our 4 Way Manifold Valve Available as Follows

• 5 Valve Manifold -H Type
• 5 Valve Manifold - T Type
• 5 Valve Manifold - R Type

Specifications

• Connection : 1/2" Female NPT to 1/2" Female NPT.
• One-piece, high strength body construction for safety no welding used.
• Bonnet lock pin prevents accidental valve disassembly.
• 2-1/8" (54mm) Port centerline dimension for proper alignment.
• 100% pressure tested for shut-off and at all seals.
• 316 stainless steel construction for superior corrosion resistance.
• Bonnet-to-body seals are metal-to metal. No O-Rings are used.
• Manifolds feature a 4:1 safety factor.
