Valve Manifold Valves

Listing ID #4163951

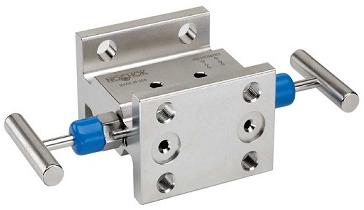

2 Way Manifold Valves that we supply are applicable for flow transfer of steam, gas and oil processing. These are widely demanded in petrochemical and chemical plants where high temperature and pressure processing is done. We export these Two Way Manifold Valves in various parts of the world at competitive prices
Features :
316 S.S. Body construction for superior corrosion resistance
Non rotating VEE tip prevents galling & promotes repetitive shut-off
Optional graph oil packing material is available for high temp. rating 1000° F @ 6000 PSI
Testing :
Pneumatic Test : Each valve is tested with nitrogen at 100 Psi in accordance with MSS - SP- 61 for seat & Packing leakage
Hydro Test: Performed with pure water in accordance with MSS-SP-61. Body tested at 1.5 times & seat leakage tested at 1.1 times of the working pressure
Design Standard :
Pressure & Temperature rating are selected from ANSI B16.34
Standard class valves based on ANSI B16 - Class 2500
Optional sour gas service confirms to NACE Std. MR-01-75
