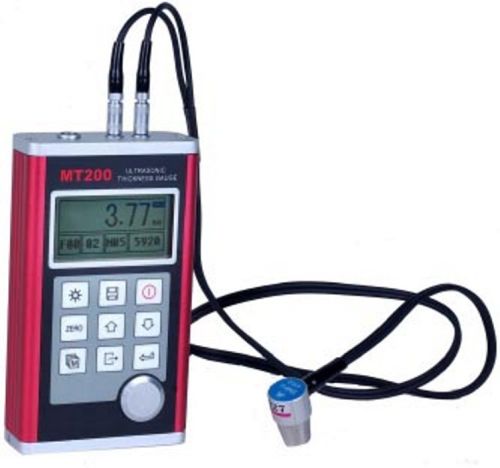

VAISESHIKA Ultrasonic Thickness Gauge

Listing ID #651497

Get Latest Price

MOQ 1 Piece(s)
Brand NameVAISESHIKA
Preferred Buyer Location All over the world

We are offering ultrasonic thickness gauge. Mt series of digital ultrasonic thickness gauge is based on the same operating principles as sonar, the mt200 and mt160 is capable of measuring the....

View More Details

Send Enquiry

Product Details

We are offering ultrasonic thickness gauge.
Mt series of digital ultrasonic thickness gauge is based on the same operating principles as sonar, the mt200 and mt160 is capable of measuring the thickness of various materials with accuracy as high as 0.01 millimeters, or 0.001inches. It is suitable for a variety of metallic and non-metallic materials
features
capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials
four transducer models are available for special application, including for coarse grain material and high temperature applications
probe-zero function, sound-velocity-calibration function
two-point calibration function. Two work modes: single point mode and scan mode
coupling status indicator showing the coupling status
battery information indicates the rest capacity of the battery
auto sleep and auto power off function to conserve battery life
optional software to process the memory data on the pc. Optional thermal mini-printer to print the measured data via rs232 port
specification
display : 128 x 64 dot matrix lcd with el backlight
measuring range : 0.75 - 300 mm (in steel)
sond velocity range : 1000 - 9999 ms
resolution : 0.1 0.01 mm (slectable)
accuracy : +- (0.5% thickness + 0.4 ) mm, depends on materials and conditions
units : metric english unit selectable
communication : rs 232 serial port
power supply : two aa size, 1.5 v batteries
: 100 hours typical operating time (el backlight off)
dimensions : 132 x 76.2 x 35 mm
weight : 345 grams
four measurements readings per second for single point measurement, and ten per second for scan mode.
Memory for 20 files (upto 99 values for each file) of stores values.
Upper and lower linit can be preset. It will alarm automatically when the result value exceeding the limit.
