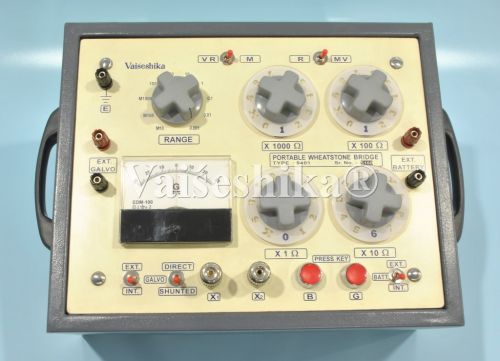

Contact SupplierWe are offering vaiseshika protable weatstone bridge.
Description
"vaiseshika" portable wheatstone bridge type 9401 has been specially designed for the measurement of resistance in the range 0.01 ohm to 1.0 megohm. The resistance measurement spectrum provided in the equipment is coupled with excellent accuracy of the order of ±0.05%. These exquisite capabilities have been realized in this equipment by using non-inductive imported manganin wire (german make). In addition, precision phosphor-bronze silver plated band switches have been utilized to minimise the contact resistance errors to 0.0005 ohm per switch. The manganin coils have been subjected to long ageing process to eliminate the possible variations in the resistive value due to climatic temperature variations. All the coils have been properly insulated with high grade insulation material to arrest the variation in the values.
Features
ideal for fault location in cables by varley and murray loop test
battery as well as mains operated
portable and completely self-contained
self-cleaning and hard silver plated low contact resistance switches
precision co-efficient of thermal linear expansion
built-in taut suspension galvanometer
manganin wire having very low temperature co-efficient
wide measurement capability from 0.01 ohm to 1.0 megohm
specification
resistance range : 0.01 ohm to 1.0 megaohm
series arm : 10 x 1000, 10 x 100, 10 x 10, 10 x 1 ohm totaling to 11,110 ohms
ratio arm : seven ratio arms having the multiplier of x1000; x100; x 10; x 1; x 0.1; x 0.01; and 0.001
accuracy
series arm : +- 0.05%
ratio arm : +- 0.02%
galvanometer : taut suspension built in type
supply source
mains : 230+-10%ac, 50hz
battery : 4.5 volts
switch : phosphor bronze hard silver plated
dimensions (in cms) : 38(l)x28(d)x18(h)
weight : 5kg.
