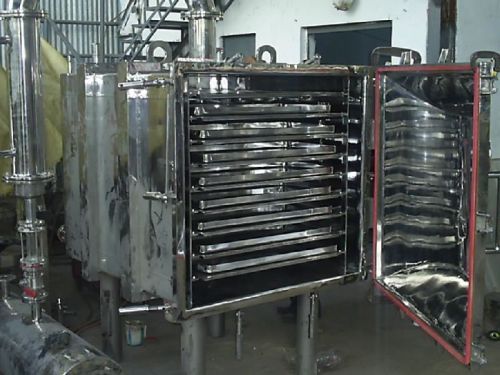

Vacuum Tray Dryer

Listing ID #3898395

vacuum tray dryer (pbxvtd) is suitable for drying of thermal sensitive materials easily resolved, polymerized of deteriorated under higher temperature. Sterilization can be conducted prior to the drying process, during which no matter is allowed to enter the product. Static vacuum dryer eliminates the configuration damage of the drying materials therefore widely used in pharmaceutical, chemicals and foodstuff etc.

salient features:

• mani body and door are made in ss 316 with rigid flange
• shelves(hollow type) in ss 316 with baffles
• trays(without back folding) in ss 316
• condenser(shell & tube) and receiver in ss 304 for solvent recovery
• digital temperature indicator(flp) at h.w. Inlet and outlet
• digital temperature indicator(flp) at vacuume line
• dail type vacuume gauge in vacuum line
• dail type temperature guage in body
• glass view provided on door and receiver
• flow glass provided to monitor condensation between condensor and receiver
• validation port
• provision for nitrogen purging
• vacuum break valve provided in vacuum line
• construcion and finish as per cgmp standards

optionals:

•  condenser and receiver are made in ss 316
• 300 mm wide ss 304 skirting all along the flange
• 50 mm thick glass wool insulation on the vacuum chamber outer surface except door. The insulation is enclosed and covered with removable ss 304 angle frame
• digital temperature controller with pneumatic operated valve at hot water/steam inlet
• 2 stage water ring type vacuum pump (partial ss) run by flp motor
• hot water system with circulation pump

testing:

the vacuum dryer shelves are hydro-tested 5 kg/cm² assembled condition. The vacuum chamber is tested for leaks under vacuum.
