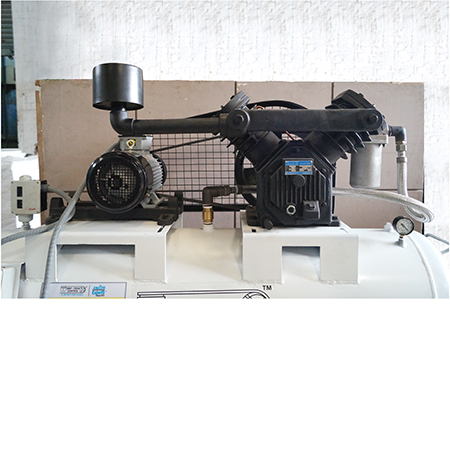

Contact SupplierThese Vacuum Pumps remove gas molecules from the Vacuum Receiver ultimately providing ‘suction’ for the applications. The atmospheric air in the closed vacuum receiver is drawn out into the suction manifold and discharged to the atmosphere by means of a Reciprocating Piston driven by a Crank Shaft. Built on the foundation of time-tested Reciprocating, Dry, Lubricated Piston type Technology, these Vacuum Pumps are designed for applications of Medical, Pharmaceutical, Laboratories, and similar industries.
S.N. | Model | Displacement | Motor | |||
LPM | CFM | m3/hr | HP | kW | ||
Maximum Vacuum: 736 mm, 29” of Hg, 981 mbar | ||||||
1 | VBJ - 2 | 481 | 17 | 28.9 | 2 | 1.5 |
2 | VBJ - 3 | 878 | 31 | 52.7 | 3 | 2.2 |
3 | VBJ - 5 | 1472 | 52 | 88.3 | 5 | 3.7 |
4 | VBJ - 7.5 | 2492 | 88 | 149.5 | 7.5 | 5.5 |
5 | VBJ – 10 | 3738 | 132 | 224.3 | 10 | 7.5 |
Standard Configurations: Base Frame Mounted or Receiver Mounted | ||||||
Standard Receiver Capacities: 150, 300, 500, 750 Liters |
