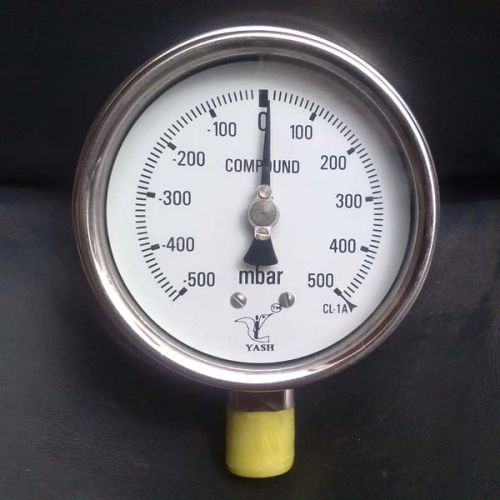

Contact SupplierYASH INDUSTRIAL VACUUM GAUGE (HEAVY DUTY VERSION) - (YVG)
Technical Specification - STANDARD VERSION
Accuracy ±1% of FSD
Operating Pressure 75 % of the Scale Value
Over pressure limit 30% of F.S.
Case & Bezel Die-cast aluminum weather proof stove enamel black finished case & bezel to ensure IP-55 as per IS-2147 suitable for use outdoor application without any additional protection.
Dial & Scale Dial will be made of suitable material black figure on white background with anti-corrosive finished scale and marking over an arc of 2700 confirming to BS-5235 non –reflective and marking as per IS-3602.
Joints Tig Argon Arc Welding
Bourdon AISI 316 SS
Socket AISI 304 SS
Movement AISI 304 SS
Pressure Element Bourdon Tube
Range Any
Pointer Aluminum, black coloured, Zero adjustable
Window Plain / Toughened Glass
Thread Connection 1/2" BSP / NPT M
Mounting Bottom
Application: ANY TYPE OF INDUSTRY ESPECIALLY CHEMICAL / PHARMACEUTICAL INDUSTRIES
