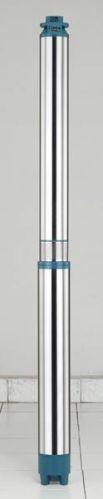

Contact SupplierWe are a prime Manufacturer, Exporter and Supplier of V4 Submersible Pump Set. V4 Submersible Pump Set, offered by us, has lower and upper housing made up of cast iron and stator shell manufactured from heavy duty stainless steel. V4 Submersible Pump Set operates in both single and three phases and has a minimum and maximum discharge of 400 and 15 LPM respectively.
Power Requirement
Packaging Material : Carton Box
Part Name | Materials |
---|---|
Shaft | SS 431 / SS 410 |
Bearing Bush | Leaded Tin Bronze |
Trust Bearing | S.S. / Carbon / Teflon |
Lower/Upper Housing | Cast Iron |
Stator Shell | Stainless Steel (Heavy Dety) |
Impeller / Diffuser | Noryl - GFN 2-7-01 |
Bearing Bush | Leaded Tin Bronze |
Pump Shaft | S.S. 202 |
Suction Shaft/NRV | Cast Iron |
Strainer/Cable Guard | Stainless Steel |
Power Range | Single / Three Phase |
---|---|
Speed | 2850 RPM |
Max. Discharge | 400 LPM |
Min. Discharge | 15 LPM |
Max. Head | 900 Ft. |
Per Stage Head | 20 Ft. |
