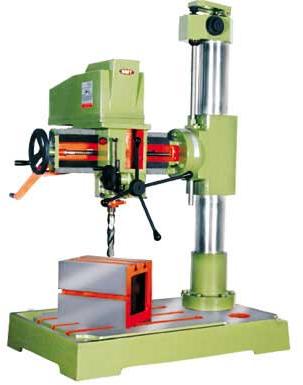

V Belt Driven Radial Drill Machine

Listing ID #22176

We are instrumental in manufacturing and supplying of V Belt Driven Radial Drill Machine that is well-acclaimed for its high efficiency and durability among the clients. These V Belt Driven Radial Drill Machines can be availed in drilling rods of various dimensions for drilling holes of different sizes. Features

• Perform efficient
• Heavy duty
• Hustle free working
• User friendly operation

Can Easily Drill Hard
Materials Such As

• Wood
• Concrete
• Plastics
• Metals

Specifications
ModelBR – 25BR – 40BR – 40 BADrilling Capacity25mm40mm40mmPillar Dia.127mm170mm170mmSpindle NoseMT-3MT-4MT-4Dist. From Spindle to Pillar Surface620mm825mm790mmSpindle Travel200mm250mm215mmNo. Of Spindle Speed888Spindle Speed (RPM)110-288070-200070-2000Base To Spindle Nose810mm950mm995mmDrilling Motor1 & 0.5 H.P.1.5 & 0.5 H.P.1.5 & 0.5 H.P.Fine FeedFine FeedAuto Feed 0.04 to 0.08
