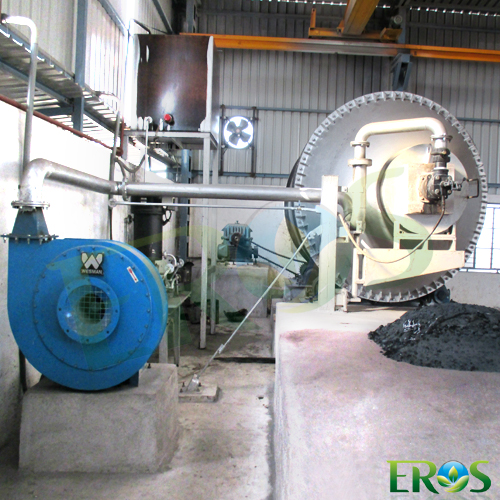

We are a renowned organization that is involved in manufacturing and supplying Rotary Furnaces. It is very flexible and universal equipment used for recycling many non-ferrous metals. Offered range generates high pollution both as flue gases & fugitive emissions. Moreover, we offer these furnaces in various specifications at nominal rates.
Features:
Equipment scalable for installing higher capacities.
Recovers all lead in one production cycle.
Can be fired with various fuels.
Specifications :
Outside dimensions of the Rotary
Shell diameter 2075 mm
Shell length 2500 mm
Total length 4500 mm
Charging diameter 450 mm
Exhaust side diameter 450 mm
Refractory thickness 200 mm
Fuel Furnace Oil
Burner Model 4 A
FD Fan capacity 1250 cmh at 1000 mm of WG
Gear Box in drive 8”, 1:40 Ratio
Motor in drive 15.0 HP x 960 RPM
Structure used for base ISMC 250 x 80
Other Details:
Raw Material Charged 3000 kgs Batch
Total additive chemicals charged 400-500 kgs Batch
Rotational speed 1-2 RPM
Fuel used Furnace Oil
Calorific value of fuel used 8600 kCal kg.
Fuel consumed 30-40 lt hr.
Air provided for process 1250 cmh
Lead produced 9000-10000 kgday (for Raw Material feed of 12-15 TpD;
raw material being lead powder and plates)
Flue gas generation 15000 cmh
