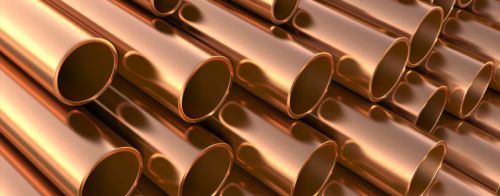

Copper Cupro Nickel Pipe, Outer Diameter : 4.00 to 22.00 mm

Listing ID #4315476

Get Latest Price

GradeUNS C 71500 (CU -NI- 70/30)
Outer Diameter4.00 to 22.00 mm
Country of OriginIndia
TypeSeamless / ERW / Welded / Fabricated / LSAW Pipes
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Grade UNS C 71500 (CU -NI- 70/30)
Outer Diameter 4.00 to 22.00 mm
Country of Origin India
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Material Copper
Length Double Ranidom & Cut Length
Size 1/2
Wall Thickness Between 0.15mm and 1.50 mm
End Plain End, Bevelled End, Treaded
Form Round, Square, Rectangular, Hydraulic Etc.

We at Nexus Metal And Alloys manufacture, export and supply a complete scope of best quality Cupro Nickel Pipes which are available in different evaluations such as Cu-Ni 70/30, and Cu-Ni 90/10. We have been valued by our customers for its highlights, for example, dimensional exactness, exact working and strong.

ASTM / ASME SB 171, SB 151 Cupro Nickel Pipes are regularly utilized as a part of seawater piping because of its total protection from barnacles and other marine life forms. Its protection influences seawater to putting out fires frameworks, desalination water frameworks, and comparable applications considerably more solid.

Chemical Properties Of Cupro Nickel Pipe :

Chemical Requirements	C70600	C71500
Copper	Remainder	Remainder
Iron	1.0 to 2.0%	0.4 to 1.0%
Nickel	10 to 11%	30 to 32%
Manganese	0.5 to 1.0%	0.5 to 1.5%
Total Imp.	0.30% max.	0.30% max.

Physical Properties Of Cupro Nickel Pipe :

Condition	T.S. Kg/mm2	EL% Min	T.S. Kg/mm2	EL% Min
Annealed (O)	35	35%	37.5-46	30%
As manufactured (M)	44 min	-	51 min	-

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

We would like to introduce ourselves as one of the leading manufacturers & Exporter of Cable, Earthing Accessories And Copper Semis ( Flat, Strip, Tape, Sheet, Plate etc. ) & Components ( As per your Sample or Drawing ) to the companies involved in Energy, Cabling, Electrical, Telecommunication & Turn Key Industries. Kindly have a look at our range of products listed below.
Earthing & Lightning Protection Accessories
1 – Tinned and Bare Flexible Braids and Connectors
2 - Earth Bars / Grounding Bars
3 - Solid Copper and Copper Bonded Rods
4 - Copper and Copper Bonded Earthing Plates
5 - Copper & Stainless Steel Earthing Tape / Strips
6 - Copper & Stainless Steel Earthing Rods
7 - Earthing Clamps (Square Tape Clamp , DC Tape Clip , Rod to Cable Clamp etc)
8 – Stainless Steel Cable Ties
Cables and Cable Accessories
1. Bell Mouth Lugs
2. Straight Barrel Lugs
3. Narrow Palm Lugs
4. Long Barrel Lugs
5. Copper Connectors & Clips
6. IP 68 Cable Glands , Marine Glands , Alco Type Clands , CXT Glands , CW Glands , BW Glands , PVC Glands
7. Split Bolt Connectors
Copper Based Products
1 - Strips
Size range : Width - 10mm to 100mm
Thickness - 1mm to 6mm
2 - Bare & Tinned Busbar
Size range : Width - 12mm to 450mm
Thickness - 0.05mm to 12mm
3 - Conductors
Size range : Diameter - 6mm2 to 630mm2
4 - Rods
Size range : Width - 6mm to 150mm
Grades Available : ETP / EC Grade , Oxygen Free Copper , Cupro Nickel 90/10 & 70/30 , Brass.
Plating available : Tin , Lead & Silver
Nexus Metal & Alloys conducts strict test on the size & quality of the material. Our powerful sources to procure material makes us very competitive. We offer scope for Third Party Inspection.
We rest assure you of our quality , after sales services & on time delivery.
