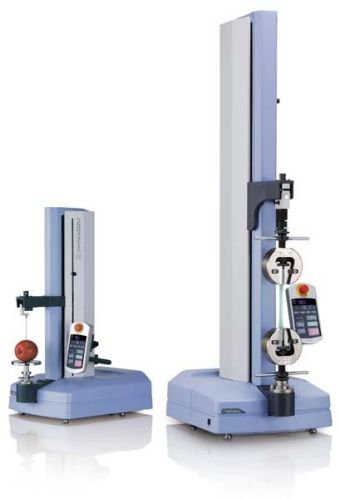

Universal Testing Machine

Listing ID #1043668

Compact solutions for performing tests
ez test table top universal testing machines
ample product line to meet wide variety of requirements
with 3 tester models and 12 types of load cells available, the optimal system can be selected from 32 possible combinations. Furthermore, a high-speed model with a return speed of 3000 mmmin significantly shortens test cycle times.
Ez-sx short model: this is ideal for testing food texture, pharmaceuticals and their packaging. With a wide range of testing speeds, it can accommodate all sorts of evaluation testing applications.
Ez-lx long stroke model: with a 5kn maximum capacity, these are perfect for tensile testing and bend testing of plastics. The 920mm stroke capacity also makes it perfect for testing rubber, film and other material with long elongation.
Ez-lx hs long stroke and high speed model: the long stroke improves productivity. The 3000 mmmin return speed significantly the wait time between tests, even for tests with long displacements.
Key features:
 light weight and compact design
 single column, finger-tip operation
 max. Capacity 500n to 5kn model
 travel up to 920 mm
 wide speed range 0.001 to 2000 mmmin
 fast return speed
 touch load alarm
 high precision load cell: ±0.5% of indicated value within 11 ~ 1500 of indicated force
 cross head speed accuracy of ±0.1%
 high speed sampling of 1msec
 automatic load calibration
 standalone operation without pc
 usb interface for pc laptop
