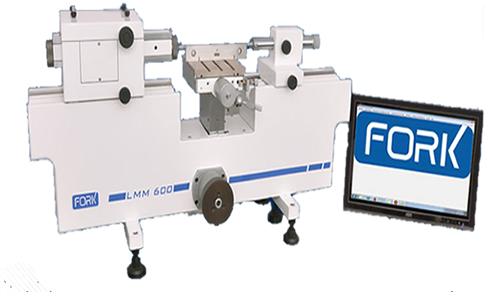

Universal Length Measuring Machine

Listing ID #3894560

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The universal metroscope is a metrological instrument for direct and differential measurements. It has high accuracy because it exactly adopts the Abbe Comparator principle and uses a....

View More Details

Send Enquiry

Product Details

The universal metroscope is a metrological instrument for direct and differential measurements. It has high accuracy because it exactly adopts the Abbe Comparator principle and uses a high-precision measuring system. This instrument is mainly used in metal-working industry, especially the inspecting departments of machine building, tool making, in the manufacture of gauges and measuring instruments.
Its measuring parts are as follows:
a. Smooth cylindrical work pieces such as axis, hole, gauge and ring gauge.
b. The pitch diameter of internal thread, thread gauge and thread ring gauge.
c. Work piece with parallel plane surface, such as measuring rod and lower grades gauge.

TECHNICAL SPECIFICATION

External Measuring Range (mm) 0 – 600 mm
Internal Measuring Range 3mm – 400mm
Thread measurement:
Measuring the internal pitch diameter M3 ~ M150
Accuracy of the instrument:
Internal measurement 0.7+L/2000 μm (20 ± 0.2) ° C)
Universal worktable:
a. Mounting area approximately (160 X 160) mm2
b. Adjusting range of height (0 ~ 75) mm
c. Transverse travel 25 mm
d. Tilting range around Y axis ± 3°
e. Work table rotation ± 4°
f. Load capacity 10 Kg

Company Details

We Fork Measuring Company situated in Rajkot City of Gujarat State in India. We are serving the nation in the field of the engineering and its applications since 2010 for measurements. Mainly we are manufacturers of the measuring instruments also Special Purpose Instruments as per customer requirements. Fork setting up a worldwide distributor network to give service and support and establish customers.
Our Goals are :
Products to fulfill international quality standards.
Develop products as per customer requirements.
Ease of using our products with digitalization.
True Value of product on the money you spend.
Our application team constantly exploring innovative ways to achieve better results.
