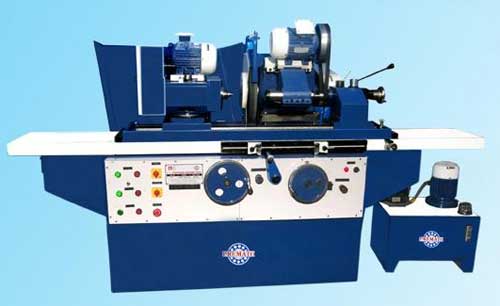

Contact SupplierWe are recognized as one of the most eminent Hydraulic Universal Cylindrical Grinding Machine Exporters in Indian as well as International Markets. The technically advanced Universal Cylindrical Grinding Machine, made available with us, is available with precise assemblies such as Wheel Head , Work Head, Tail Stock ,Electrical control ,Hydraulic and many more. In addition, these assemblies are provided in various technical specifications that are required by the clients.
Model | PMT/300/125 | PMT/600/150 | PMT 800/150 | PMT/1000/180 | PMT/1250/200 |
---|---|---|---|---|---|
Centre height | 125 mm | 150 mm | 150 mm | 150/200 mm | 200 mm |
Max. Swivel of table. | ±8 | ±8 | ±8 | ±7 | ±6 |
Max. Grinding Length. | 300 mm | 500 mm | 800 mm | 1000 mm | 1250 mm |
Table speed inf. variable | 0.1 -4 m/min | 0.1 -4 m/min | 0.1 -4 m/min | 0.1 -4 m/min | 0.1 -4 m/min |
Dwell at reversals | 0 - 60 Sec | 0 - 60 Sec | 0 - 60 Sec | 0 - 60 Sec | 0 - 60 Sec |
Grinding Wheel [D x W] | 300 x 25 mm | 400 x 40 mm | 400 x 40 mm | 400 x 40 mm | 500 x 50 mm |
Wheel head Swivel | 1 | ±50 deg | ±50 deg | ±50 deg | ±50 deg |
Wheel head rapid approach | - | 50 mm | 50 mm | 50 mm | 50 mm |
Sfe.dFwork head- speed | 4 | 4 | 4 | 8 | 8 |
Work head centre | MI - 3 | MT - 4 | MT - 4 | MT - 4 | MT - 4 |
Work head swivel | ±90 | ±90 | ±90 | ±90 | ±90 |
Tail Stock Centre | MT - 3 | MT-4 | MT-4 | MT-4 | MT-4 |
