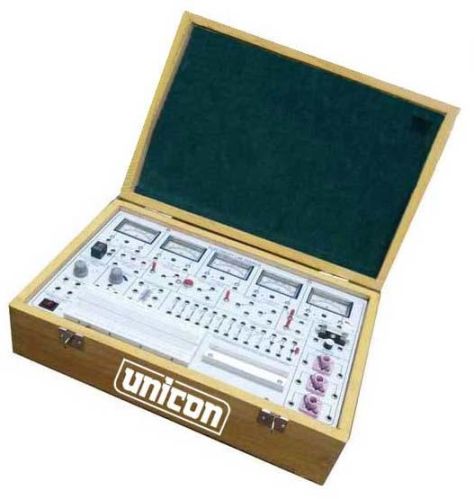

We are offering electricity lab trainer (elt)
trainer specification:
1. one number of ac voltmeter: 15v
2. one number of dc voltmeter : 30v
3. one number of galvanometer: ± 600ua
4. one number of dc ampere meter: 0.5amp.
5. one number of dc ampere meter: 5a
6. power supplies: power supply: 3, 6, and 12v acdc at 3.5a, power supply: 30vac at 1a, power supply: 15vdc at 100ma.
7. one number of spdt switch.
8. one number of dpdt switch.
9. one number of push switch.
10. two number of logic switche.
11. one number of relay 12vdc.
12. one number of buzzercontinuity tester.
13. one number of transformer input 12-0-12 v and output 6-0-6 v.
14. three number of bulb (6 v, 0.3a).
15. resistance 1e21w, 5e5w, 50e5w, 100e5w, 220e2w, 470e2w, 1k1w, 100k1w.
16. two number of capacitance 1000mfd50v.
17. two number of diode in4007.
18. one number of led (5mm).
19. one number of potentiometer (10k).
20. one number of breadboard (840 tie points).
21. one number of fuse holder (open type).
22. electromagnetic induction&transformer.
23. main supply 230vac, 50 hz.
Accessories:
1. twelve numbers of patch cords connecting leads.
2. three numbers of magnets (two number of bar type, one number of horseshoe (u) type).
3. one number of coil (100 turns) and 200 turns
4. glass fuses - 10 nos. 0.5a
5. compass - 1 no.
6. core - 1 set of e& I with bolt
7. ic - and (ic 7408), or (ic 7432), not (7404) and ex-or gate (ic7486)
optional accessories: 1. Multimeter - 1 no.
