Contact SupplierWe bring forth a wide gamut of Unequal Straight Couplings that are flawlessly designed in order to provide excellent performance. Unequal Straight Couplings, offered by us, are widely appreciated for corrosion resistance, high strength, rugged construction, fine finish, leak-proof joints and durability. Unequal Straight Couplings are widely used in various fittings like sanitary pipes, pipes used in heating systems, etc.

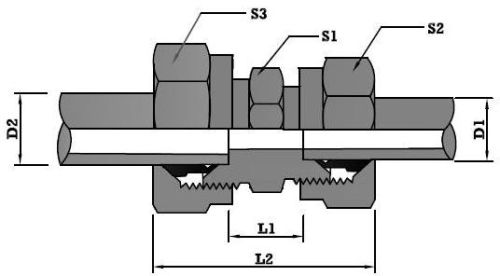

D1 | D2 | L1 | L2 | S1 | S2 | S3 | Code No. |
---|---|---|---|---|---|---|---|
6 | 8 | 11 | 40 | 14 | 142 | 17 | USCL6X8 |
8 | 10 | 13 | 41 | 17 | 17 | 19 | USCL8X10 |
10 | 12 | 14 | 42 | 19 | 19 | 22 | USCL8X12 |
12 | 15 | 16 | 45 | 24 | 22 | 27 | USCL12X15 |
15 | 18 | 16.5 | 48 | 27 | 27 | 32 | USCL15X18 |
18 | 22 | 20 | 51 | 32 | 32 | 36 | USCL18X22 |
22 | 28 | 21 | 54 | 41 | 36 | 41 | USCL22X28 |
28 | 35 | 23 | 59 | 46 | 41 | 50 | USCL28X35 |
35 | 42 | 21.5 | 66 | 55 | 50 | 60 | USCL35X42 |
D1 | D2 | L1 | L2 | S1 | S2 | S3 | Code No. |
---|---|---|---|---|---|---|---|
6 | 8 | 18 | 48 | 19 | 17 | 192 | USCS6X8 |
8 | 10 | 17.5 | 49 | 22 | 19 | 22 | USCS8X10 |
10 | 12 | 19 | 50.5 | 22 | 22 | 24 | USCS10X12 |
10 | 16 | 20 | 54.5 | 27 | 24 | 27 | USCS10X16 |
12 | 16 | 20 | 54 | 27 | 27 | 30 | USCS12X16 |
16 | 20 | 23 | 62 | 32 | 30 | 36 | USCS16X20 |
20 | 25 | 23.5 | 67 | 41 | 36 | 46 | USCS20X25 |
25 | 30 | 24.5 | 77 | 50 | 46 | 50 | USCS25X30 |
30 | 38 | 25.5 | 87 | 55 | 50 | 60 | USCS30X38 |
