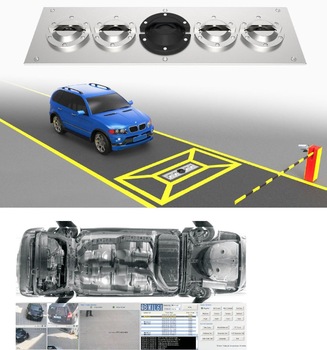

Contact SupplierThe Comm Port CPAS uses color area scanning technology to effectively scan and inspect the undercarriage of vehicles to search and analyze images for explosive devices, suspicious objects or contraband such as drugs and weapons. The system is ideal for government, military, transportation and corporation facilities requiring security checkpoints for vehicles such as vans, tractor, trailers, buses and passenger vehicles.
Unmatched integration ï¬ï¿½exibility : Transmit your video and integrate it with automatic license plate recognition and driver image-capture cameras. The CPAS UVIS system can be configured with motion detection or loop detection so that you only record “live” events.
Seeing is securing in real time : With the CPAS Series, you can view in real-time and full color for the entire length of the vehicle. See it live with no delay.
There is no waiting like with other systems and no need for expensive control units. Full high definition color, even with vehicles moving up to 75 KMPH The scanning camera are available from 500FPS up to 900FPS.
Sharp images provide the total picture : A high-resolution digital color camera gives you clear, sharp images. Bright white, high-intensity Led-based lighting illuminates the vehicle’s undercarriage so details aren’t lost in shadows. With the full length light arrangement and specially designed camera angle the wheel wells and other under carriage details are easy to capture so there is no need to add any additional auxiliary cameras for hard to view areas.
Built rugged for long life : This heavy duty system comes with built in Scanner and Light arrangements. The weight bearing capacity for standard systems is 78-ton with an optional 110- ton version available upon request. Harsh environments, rugged terrain and extreme temperatures were taken in to consideration while designing this system. All CPAS systems are backed by a two year warranty with worldwide installation and support available.
Features
Minimum Construction Required
Security : Government assets are under constant threat from all kinds of sources: political, radical, protest, disruption and more. If governments stop running or if security fails, police are dispatched, guards are posted and real economic loss occurs. Comm Port provides flexible, scalable solutions that put the latest technology to work for you. Comm Ports’s UVIS/UVSS system delivers the mission- critical solutions required to ensure economic continuity and decreased risk from intrusion, vandalism and terrorism.
Cost Savings : Your security budget can dwindle in a hurry because of changes to personnel or upgrades to equipment due to regulation changes. Comm Port integrates our broad portfolio of products — UVSS/UVIS systems, road barriers, license plate readers, and video management systems — to serve you efficiently and save you money. There are few investments more important for your site than its security, and Comm Port makes sure your investment is a smart one.
Productivity : Response time is a key component for any military or government security system. When the mission is critical, Comm Port security solutions, specifically our CPAS UVIS and UVSS series, meet the challenge with complete end-to-end site security. Whether you need an ultra-simple operator interface or multi-lane system, Comm Port security systems provide system operation with up-time of 99.99%
Model No |
System Description |
IMAGE TYPE |
FRAME RATE |
SPEED KMPH / (MPH) |
WEIGHT CAPACITY (TONS) |
---|---|---|---|---|---|
System Includes: UVIS Scanner Camera, LED Lighting Modules, | 45 (28) |
||||
Ground Loop, Ground Loop Controller, Data Acquisition Module, | |||||
CPAS - 2001 | Power Supply, Cabling, system Housing with framing. System is | B/W | 500 | 78 | |
capable of up to 500 FPS, System will handle up to 45 KMPH of | |||||
Mono Chrome Composite Image. | |||||
System Includes: UVIS Scanner Camera, LED Lighting Modules, | 45 (28) |
||||
Ground Loop, Ground Loop Controller, Data Acquisition Module, | |||||
CPAS-2101 | Power Supply, Cabling, system Housing with framing. System is | color | 500 | 78 | |
capable of up to 500 FPS, System will handle up to 45 KMPH of | |||||
Color Composite Image | |||||
System Includes: UVIS Scanner Camera, LED Lighting Modules, | 65 (40) |
||||
Ground Loop, Ground Loop Controller, Data Acquisition Module, | |||||
CPAS-3001 | Power Supply, Cabling, system Housing with framing. System is | B/W | 700 | 78 | |
capable of up to 700 FPS, System will handle up to 65 KMPH of | |||||
Mono Chrome Composite Image. | |||||
System Includes: UVIS Scanner Camera, LED Lighting Modules, | 65 (40) |
||||
Ground Loop, Ground Loop Controller, Data Acquisition Module, | |||||
CPAS-3101 | Power Supply, Cabling, system Housing with framing. System is | color | 700 | 78 | |
capable of up to 700 FPS, System will handle up to 65 KMPH of | |||||
Color Composite Image | |||||
System Includes: UVIS Scanner Camera, LED Lighting Modules, | 75 (49) |
||||
Ground Loop, Ground Loop Controller, Data Acquisition Module, | |||||
CPAS-4001 | Power Supply, Cabling, system Housing with framing. System is | B/W | 900 | 78 | |
capable of up to 900 FPS, System will handle up to 75 KMPH of | |||||
Mono Chrome Composite Image | |||||
System Includes: UVIS Scanner Camera, LED Lighting Modules, | 75 (49) |
||||
Ground Loop, Ground Loop Controller, Data Acquisition Module, | |||||
CPAS-4101 | Power Supply, Cabling, system Housing with framing. System is | color | 900 | 78 | |
capable of up to 900 FPS, System will handle up to 75 KMPH of | |||||
Color Composite Image |
