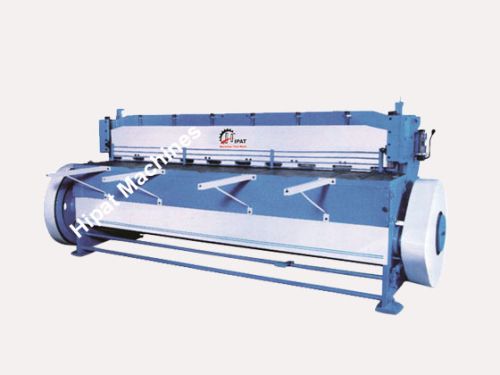

Under Crank Shearing Machine

Listing ID #3850563

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

We are one of the leading UNDER CRANK SHEARING MACHINE which is a statement in itself, these are designed through structural analysis technique which ensures scratch free production, high accuracy and repeatability. Interlock Shearing Machine which we manufacture are the most trusted and reliable machine in the market. Being one of the prime Shearing Machine Supplier in India, we know that quality assurance and customer satisfaction is a key to success for any business to grow and success.

The OVER CRANK SHEARING MACHINES have been designed and developed through structural analysis technique for continuous production, accuracy and repeatability. This Machine over Crank Shearing Machine is provided with high quality single segment knives for longer tool life. Ease in assembling knives reduces down time. The knives blades are four edged. Scale on the black gauge gives instantaneous reading of distance between shear and back gauge. Power Shearing Machine Supplier, in India we are trusted worldwide not only for the robust quality of our machines but also for the assurance of durability and a long life.
Feature

Foot pedal
Fly wheel and gear guard
Self lubrication system
Motor pulley
A pair of four edge shear blade
Standard front gauge
Black gauge manually operated
Finger guard fitted in front of hold down for operator protection

Specification

All dimensions are in mm
Power supply 400/440 volts, 3 phase, 50 cycles
Undergo stringent quality checks for easy and smooth operation
Motorized back gauge automatic lubrication system
V belts
All dimensions are in mm
Power supply 400/440 volts, 3 phase, 50 cycles
Electric Motor Starter
Stroke Counter
Hold Down Pads

Technical Specifications

Model	Under Crank
HMT	U1250	U2000	U2500	U3000
Shearing Length MS	1270	2050	2540	3100
	1525
Shearing Thickness for MS	3/4	4	4	4
Size of Blades	1270x75x 18	2050x75x 18	2540x75x 18	3100x75x 18
No. of Segments	2	4	4	6
Table Size	425	425	425	425
Height of Table	825	825	850	850
Max. Back Gauge Gap	20-500	20-500	20-600	20-600
Max. Front Gauge Gap	600	600	600	600
No. of Strokes Per Min.	50/55	45/50	40/50	40/50
Required HP/RPM (1440)	5	7.5	10	15

OPTIONAL ACCESSORIES	STANDARD ACCESSORIES	APPLICATIONS
1. Hydraulic Hold Down,	1. Gear & Fly Wheel Guard,	1. ELECTRIC PANNELS
2. Automatic Lubrication System.	2. Foot Paddle	2. ROOFINGS
3. Ball Transfer or Ball Roller.	3. Hand Operated Back Gauge	3. BUS BODIES
4. Suitable Electric Motor	4. Single Shot Lubrication System	4. KITCHEN EQUIPMENTS
5. Push Button Starter	5. T-Sloted Front Gauge	5. GENERATOR ENCLOSURES
6. Portable Electro Magnetic Paddle	6. Cutting area illuminated for clear view of blades.	6. & Motor Pulley
7. Switch Instead of Foot Paddle		7. STAINLESS STEEL EQUIPMENT’S
		8. COIL CUTTING INDUSTRIES
		9. AIR CONDITION DUCTS
		10. CONTAINER MANUFACTURING
		11. FLOUR MAKING MACHINES
		12. INDUSTRIAL STRUCTURES
		13. RAIL COACHES
		14. TIPPER TRUCKS
		15. WIND MILL MANUFACTURING
		16. TURNINE ENCLOSURES
