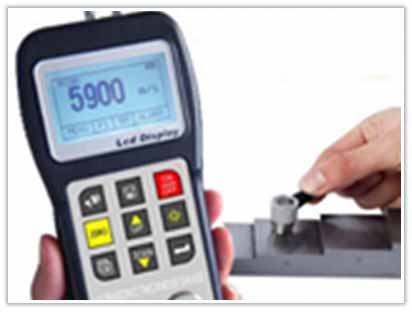

Ultrasonic Thickness Gauge

Listing ID #4168815

Get Latest Price

Measuring Range1.5 mm~200.0mm
UnitsMetric/Imperial unit selectable
MediumDM water
Measurement cycle4 times/SEC, scanning of single point measurement model 20 times per second.
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Measuring Range 1.5 mm~200.0mm
Power Source Type AA alkaline battery 1.5 V (2)
Medium DM water
Outline Dimensions 150mm*74mm*32mm
Data Memory 5 files(up to 100 values for each file)of stored values 5 Sound Velocity of stored values
Work piece surface temperature - 10 ~ 60 â
The minimum thickness value capture capacity With a minimum thickness value capture capacity
Accuracy ±(0.5%Thickness+0.04)mm, depends on Materials and conditions
Units Metric/Imperial unit selectable
Measurement cycle 4 times/SEC, scanning of single point measurement model 20 times per second.
Weight 238 g
Standard configuration URNDT ACCUR-1 host, 5MHz probe, 4 mm steel calibration block, coupling agent, 2 batteries (non - Aviation), Software, RS232 Connect Cable
Display resolution 0.01mm or 0.1mm(lower than 100.0mm) 0.1mm(more than 99.99mm)
Optional attachments 2 MHZ, 7 MHZ and 5 MHZ (high temperature)
Sound Velocity Range 1000m/s~9999m/s(0.039~0.394in/μs

Ultrasonic Thickness Gauge is a new generation of intelligent ultrasonic thickness gauge, using latest high performance and low power consumption microprocessor technology, based on the principle of ultrasonic measurement, to measure the thickness of metal, glass, ceramics and other materials, and the materials of sound velocity measurement. Is widely used in all kinds of plate, pipe wall thickness, the boiler container wall thickness, all kinds of pipeline and pressure vessel, thickness measurement, monitor them in the process of using the degree of corrosion after thinning.

Model	Frequency MHZ	Diameter mm	Measuring range	Lower limit	Description
ET-02	2	14	3.0mmï½�300.0mmï¼�In Steelï¼� 40mm (in Gray Cast Iron HT200)	20	for thick, highly attenuating, or highly scattering materials
ET-05	5	10	1.5mmï½�200.0mmï¼�In Steelï¼�	Φ20mm×3.0mm	Normal Measurement
ET-05/90	5	10	1.5mmï½�230.0mmï¼�In Steelï¼�	Φ20mm×3.0mm	Normal Measurement
ET-07	7	6	0.75mmï½�80.0mm ï¼�In Steelï¼�	Φ15mm×2.0mm	For thin pipe wall or small curvature pipe wall measurement
ET-HT5	5	14	3ï½�200mm ï¼�In Steelï¼�	30	For high temperature (lower than 350â��) measurement.
ET-HT7	5	14	3ï½�200mm ï¼�In Steelï¼�	30	For high temperature (lower than 500â��) measurement.
