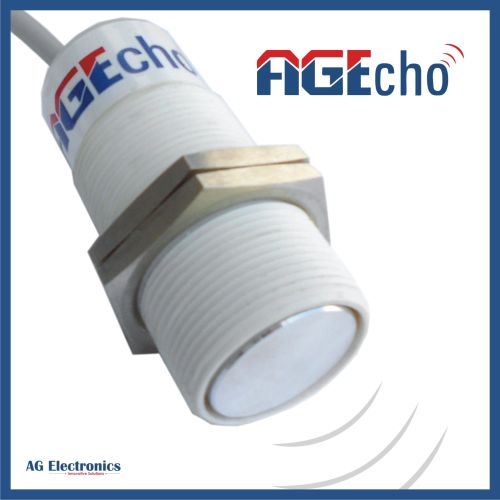

Contact SupplierWe are offering ultrasonic sensor
agecho ultrasonic sensors salient features:
• agecho ultrasonic sensors are available with output options such as analog current 4-20ma,analogue voltage 0-5v,onoff signal, trigger output for multi-sensor application, pulse width ,serial ttl ,serial rs 232c.
• agecho sensing range: 200mm to 1000mm … up to … 6000mm. (19.7feet) (0-200mm is dead band).
• agecho accuracy is 1% of the full scale.
• agecho operating voltage 12v dc, with reverse polarity protection.(24v dc optional)
• agecho is very useful non-contact type of sensing or presence or counting of object. Onoff type signal is also available.
• agecho is self-calibrated. Microcontroller is present in each sensor. This provides direct distancedepth reading with better calibration and communication with the controller module.
• agecho is very easy to install, rugged design for use in dusty and humid conditions, suitable for outdoor as well as indoor use.
• agecho very useful for non-contact distancelevel measurement. The distance of the target is measured, not just its presence, but gives directly 4-20ma, serial or pulse width data proportional to the distance of the target.
• agecho operating temperature 0 to 65 degree celsius.
• agecho temperature compensated measurement for better accuracy (optional).
• agecho unaffected by ambient light, object color or any other optical characteristic. Works with hard materials like metal sheet, plywood, or soft materials like cloth and paper, rubber etc.
