using ultrasound signals

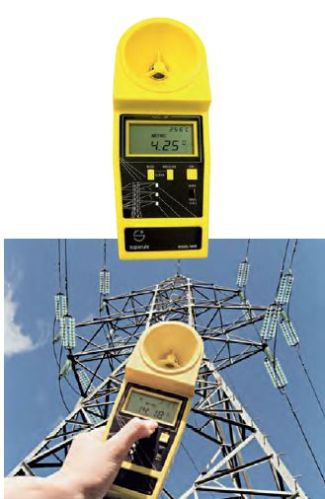

Use : The SUP600 and SUP600E cable height meters (CHMs) are high
technology devices (using ultrasound signals) which enable you to measure,
at the simple press of a button, without contact and remotely from the
ground, the height of the lowest cable and the vertical distances between up
to 6 power lines.
It enables you to measure the height, sag and clearance between overhead lines.
The ultrasonic range finder is a safer replacement for measuring sticks. It does not
come into contact with the cables, guarantees fast, accurate measurement of the
height and the minimum distances between cables from the ground
Lightweight and easy to use. Requires only one operator, with no special skills.
Saves time: immediate measurement and displaying of the result.
Can take up to 6 measurements at the same time.
Technical specifications : – Very accurate: 99%.
– Measures heights up to 23 m.
– Measures the distances between up to 6 cables. Min. clearance 150 mm.
– Measures distances from other objects (e.g.: posts, walls… up to 23 m).
– Operating temperature: -10°C to +40°C.
– Automatic temperature compensation between -10°C and +40°C.
– Permanent temperature display.
Metric or imperial measurements.
– Power supply: 6LR 61 9V alkaline battery.
– Battery replacement warning at 6 V.
– Consumption < 4 mA – Theoretical battery life: 50,000 measurements. – Automatically switches off after 3 minutes. – Built-in calibration checking. – Latest microprocessor technology. – Manufactured under permanent ISO 9001 quality control. – Comes in an imitation leather case with carry strap
