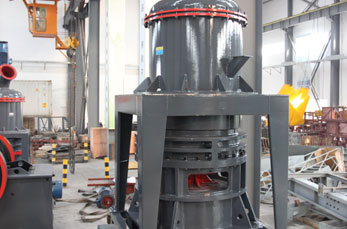

Contact SupplierFor almost 30 years, SBM has being specializing in all facets of grinding mill design and maintenance. SCM series ultrafine mill is specially designed for super fine powder grinding. Now it’s growing more and more popular with its reliable technology and perfect after-sale services.
Â
Features
Â
Application
SCM Super-micro mill is mainly used to produce fine powder and super fine powder. It is applicable to non-flammable and non-explosive materials with hardness less than 6, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talcum, talc, magnesite, illite, pyrophyllite, vermiculite, sepiolite, etc.
Model | SCM800 | SCM900 | SCM1000 | SCM1250 | SCM1680 |
Working diameter (mm) | Φ800 | Φ900 | Φ1000 | Φ1250 | Φ1680 |
Max feed size (mm) | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 |
Final size (mesh) | 325-2500 | 325-2500 | 325-2500 | 325-2500 | 325-2500 |
Output (kgh) | 500-4500 | 800-6500 | 1000-8500 | 2500-14000 | 5000-25000 |
Model | SCM800 | SCM900 | SCM1000 | SCM1250 | SCM1680 | |
Main motor | Power | 75 | 45×2 | 132 | 185 | 315 |
Analytical engine (FM motor) | Power | 18.5 | 18.5 | 30 | 15x4 | 18.5×5 |
Blower motor | Power | 45 | 55 | 75 | 55×2 | 90×2 |
Crusher | Model | PC400×600 | PC400×600 | PC400×600 | PC600×800 | PC600×800 |
Power | 18.5 | 18.5 | 18.5 | 45 | 45 | |
Elevator | Model | TH-200 | TH-200 | TH-300 | TH-300 | TH-300 |
Power | 3 | 3 | 4 | 5.5 | 7.5 | |
Vibrating feeder | Model | 300×60×1.8 Φ159-1.8 | 300×60×1.8 Φ159-1.8 | 300×60×1.8 Φ159-1.8 | 400×80×2 Φ219-2 | 400×80×2.8 |
Power | 1.5/3 | 1.5/3 | 1.5/3 | 1.5/3 | 2.2 | |
Discharge screw conveyor | Model | LS219-4.5/LS219-3 | LS219-5.8 | LS219-6.9/LS219-5 | LS219-5 | LS273-8.6 |
Power | 3 | 3 | 4 | 3×2 | 5.5×2 | |
Discharge valve | Model | ZJD-200 | ZJD-200 ZJD-250 |
ZJD-200 ZJD-250 |
ZJD-250 | ZJD-300 ZJD-200 |
Power | 0.75 | 0.75 + 1.1 | 0.75+ 1.1 | 1.1 | 1.5+0.75 | |
Pulse dust collectors | Model | DMC120/DMC16 | DMC16 | LDMC25 | LDMC45 | LDMC400×2 |
Air compressor | Model | KSH150D/LG1.5-8 | KSH240D/LG2.4-8 | KSH300D/LG3.6-8 | LG6.2-8 | LG10-8 |
Power | 11 | 15 | 22 | 37 | 55 |
