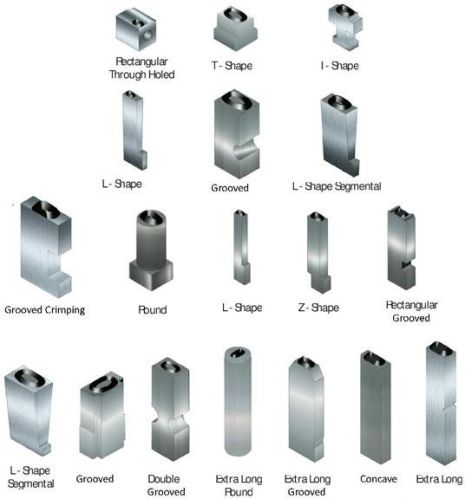

Contact SupplierWe are the one stop shop in market for availing Special Interchangeable Type Die Punch Set. Special Interchangeable Type Die Punch Set, which we offer, is known for its accurate dimensions, rust resistance and durability. We are engaged in making available premium range of Special Interchangeable Type Die Punch Set.
Application
Suitable for part numbering, batch & date Coding, etc. on Steels, Castings, Forgings, Aluminum, Brass, Plastics, Paper.Types made from High Quality Tool SteelLetters and Numbers formed by unique Cold forming process for longer tool lifeDull Nickel plated for rust free longer shelf life.Bevel Angles, Character Depth & �Bradma� Calligraphy to maximize type lifeSets are available with or without Holder.All dimensions are to very close tolerances, for the clearest uniform impression in perfect alignment when Types are assembled in Holder
Specification Bradma Type Code No. Character Size D Mm Type Size Bradma Fount Set Code No. Number of Types in Set Number of Spacers Set A mm B mm C mmT 0621.59 (1/16�)1.593.1815.8856 BN 062506T 0202282556 BN 020506T 0932.40 (3/32)2.46.3519.0556 BN 093506T 0303382556 BN 030506T 1253.18 (1/18�)3.186.3519.0556 BN 125506
Composition of 112 Types Set ( for UPTO 6.35 or 1/4�)
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
P | Q | R | S | T | U | V | w | x | y | z | 1 | 1 | 1 | 2 |
2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 | 7 |
7 | 7 | 8 | 8 | 8 | 9 | 9 | 9 | 0 | 0 | 0 | / | _ | . | . |
SP | SP | SP | SP | SP | SP |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
---|---|---|---|---|---|---|---|---|---|---|
1 | 1 | 1 | 1 | 2 | U | 2 | 2 | 2 | 2 | 3 |
3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 5 |
5 | 5 | 5 | 5 | 6 | 9 | 6 | 6 | 6 | 7 | 7 |
7 | 7 | 8 | 8 | 8 | 8 | 9 | 9 | 9 | 9 | 9 |
SP | SP | SP | SP | SP | SP | SP |
