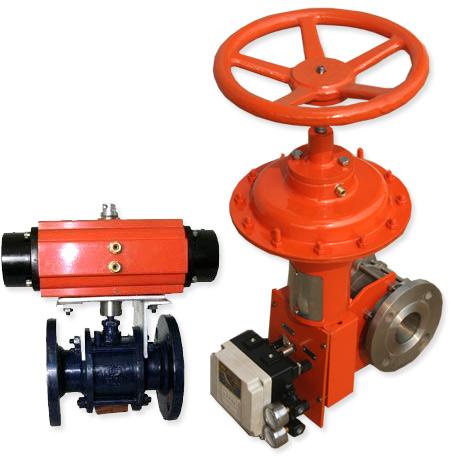

TWO Way Full Port Ball Valve

Listing ID #4175945

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

I&S produces 2-Piece Ball Valves available with ISO mounting pad & provided with mounting bracket, couplers for fitting Pneumatic Piston Cylinder with rack & Pinnion actuator & Diaphragm actuator. The valves are available with Pneumatic Rotary Actuators, either Double Acting or Spring Return type. These Pneumatic Operated Ball Valves are also available with various further options. The Ball Valves are designed with mounting dimensions as per ISO 5211. Flanged end valves and face to face dimensions are as per ANSI B16.5 Class 150 (Short Body).
View More Details
Send Enquiry

Company Information

  • Member Since 6 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

Specification
Sizes 15MM (1/2”) to 200mm (8”).
Body and End Piece Investment Casted Cast Steel ASTM A216 WCB or Stainless Steel ASTM A351CF8(SS304) or CF8M (SS316).
Ball Stainless Steel AISI 31 6
Design As per API 607 Std. Fire Safe (but not tested.)
Stem and stem nut Stainless Steel AISI 316
Ball seat Reinforced PTFE
Stem seals Reinforced PTFE
Body gasket PTFE
Antistatic device Stainless Steel SS316
Pressuretemperature rating As per BS 5351 Class 300
Body pressure rating ANSI B16.5 Class 150/300
End connection Flanged to ANSI B16.5 Class 150 / 300
Leakage Class As per ANSI B16.104 1976:Teflon seating Class VI.
Characteristics On-Off
Manual operation (Optional) Provision for manual Handlever.
Accessories

Local position indicator, Rotary Limit switch box, Air Lock Relay Solenoid Valve.

Sales point

Highly reliable, long life, simple construction and maintenance free Ball Valve.

Application

For air, water, oil, gas, corrosive Chemicals, Combustion equipment, Power Station, Hydro-Electric, Nuclear Power Generation, Chemicals & Petrochemicals Industries.

Company Details close-icon

Valve Automation India Pvt. Ltd is the SALES & MARKETING DIVISION of INSTRUMENTS & SYSTEMS with view to provide automation solutions and Control technologies especially to all PAPER & PULPS and SUGAR & DISTRILLARIES for all over India.
Our brand I&S has been dedicatedly working with both General and critical application and also we have been manufacturing both ON-OFF and CONTROLLED valve. In the year 2000 company decided to diversify in the manufacturing of control valves. Over the period time company has invested in various dies, moulds and patterns of various valves and its components. Computerised order Processing and Production Quality Control System, Latest Manufacturing Technique by using CAD/CAM, CNC Machining and assembling systems, ensures high precision product, completely interchangeable and suiting to aesthetic of modern times, yet economically produced. The company has an engineering and technical expertise together with the facilities to address the diverse automation demands of the modern process industries. Standard, Special and Customized Control Valves are all available on demand for use in a wide range of applications and industries.
CONCERNS of I&S:
Establishment of Instruments & Systems: Year-1985 (Manufacturing Unit-Dehradun)
Establishment of Valve Automation India Pvt. Ltd: Year-2017 (Sales and Marketing office-New Delhi)
Our Authorized dealer for PAN India (besides AP & Maharashtra): M/s MS ENTERPRISES
