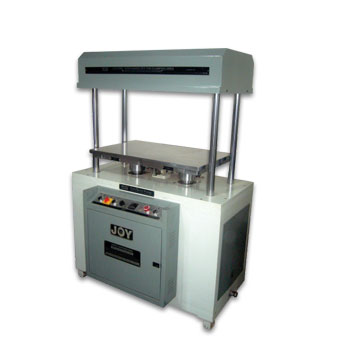

Hydraulic Book Press TBP-II with two independent stations with fixed Pile Height upto 400mm. The printed title can be pasted on open book or board to board size up to 810x525mm with single Platen & day-light area upto 400mm.
The press can be used either in Manual or Auto-Mode with each station alternatively or together, resetting to loading position after pre-set time. The option to set time on a Digital Timer in Seconds (from 001 to 999).
The option available for use are : Independent control through separate switch for left and right hand side Platens through SELECTOR position No.1..
By selecting the 2nd position, the stations (platens) will operate in tandem to a pre-set duration in Auto-mode..
In SELECTOR position �1 & 2� both the Platens will move up simultaneously with combined force of 12000 kgs. Single Platen supplied for pressing Books, Account Ledgers, Book cases & Boards etc. of large formats..
Hydraulic system is based on 2 HP Power Pack and pressing force adjustable upto 6000 kgs on each station..
Conveniently located Control Panel. Castors are provided for maximum space utilisation.
| Technical Specifications | ||
| Description | Unit | TBP II |
| Pressure Platen Size (Twin) | mm | 380x480 |
| Pressure Platen (Single) | mm | 810x525 |
| Pile Height (Min-Max) | mm | 225-400 |
| System Clamp Pressure (Each Platen) | kgs | 6000 |
| System Clamp Pressure (Single Platen) | kgs | 12000 |
| Electrical Load / Motor | kw / HP | 1.5 / 2 |
| Electrical Supply | 380/415V AC 50 Hz 3Ph | |
| Hydraulic Oil Capacity | ltrs | 30 |
| Overall Dimension (WxDxH) | cms | 120x71x163 |
| Net Weight (Approx.) | kgs | 850 |
