TUV TL Mini

TUV 16W/T5 10 x 25 BOX

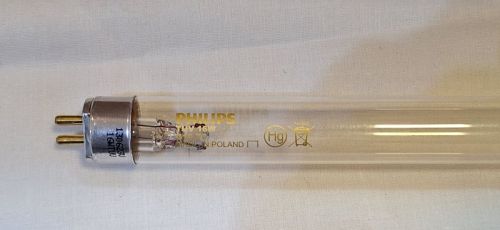

TUV TL Mini lamps are slim double-ended UVC (germicidal) lamps used in

residential water and air disinfection units. The small 16 mm diameter of the lamp

allows for a small system design and design flexibility. TUV TL Mini lamps offer

almost constant UV output over their complete lifetime, for maximum security of

disinfection and high system efficacy.

Warnings and Safety

• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and

remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do

not use a vacuum cleaner.

• DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to skin and

eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment which shields users from the

radiation.

• Lamp contains mercury.

• Manage in Accord with Disposal Laws.

Product data

General Information

Cap-Base G5 [G5]

Useful Life (Nom) 9,000 hour(s)

Light Technical

Color Code TUV

Color Designation - [Not Specified]

Depreciation at Useful Lifetime 15 %

Operating and Electrical

Power Consumption 15 W

Lamp Current (Nom) 0.4 A

Voltage (Nom) 43 V

Voltage (Nom) 43 V

Mechanical and Housing

Bulb Shape T16 [T 16mm]

Approval and Application

Mercury (Hg) Content (Nom) 4.4 mg

Datasheet, 2023, August 31 data subject to change

Lighting

UV

UV-C Radiation at 100 hr 4.2 W

Product Data

Order product name TUV 16W FAM/10X25BOX

Full product name TUV 16W/T5 10 x 25 BOX

Full product code 871150063869427

Order code 112508

Material Nr. (12NC) 928002004013

Numerator - Quantity Per Pack 1

EAN/UPC - Product/Case 8711500638694

Numerator - Packs per outer box 250

EAN/UPC - Case 8711500638717

Dimensional drawing

A

B

C

D

Product D C

TUV 16W FAM/10X25BOX 5/8 inch 11-15/16 inch

Photometric data

Spectral Power Distribution Colour - TUV 16W FAM/10X25BOX

TUV TL Mini

©
