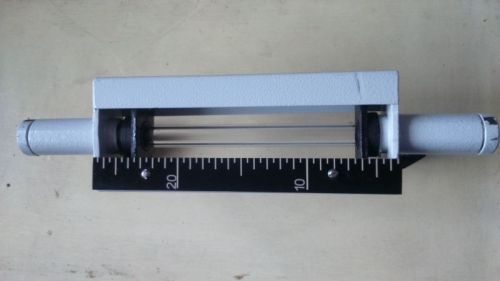

NRG GLOBAL INSTRUMENTS MAKE TUBULAR LEVEL INDICATOR

• The Indicator is fitted between two end blocks through gland packings. The indicator is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in the gauge.
• Guards are provided in the form of Tie-rods for 360 visibility or C- channels around the gauge to protect it from accidental blows.
• Glass removal for replacement possible w/o dismantling the gauge.
• 100% PTFE bush as packing to ensure positive leak tightness for full vacuum as well as 6 kg/cm service pressure.
• It is available in single length of 2000mm c/c distance. We can extend the length by coupling 2 or more through coupler.
• We are providing Air Vent plug at top & drain plug at bottom for taking sample.
• We can also provide inbuilt isolation valve or offset constructed isolation valve on request.
• The connection provided will be Flanged/Screwed/TC joint.
