Tube Socket Weld Union

Listing ID #4092763

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Tubefit tube fittings with weld ends allow you to make tube-to-weld connections. The fittings provide leak-proof seals at the tubing connections. They also eliminate costly, hazardous leaks in....

View More Details

Send Enquiry

Product Details

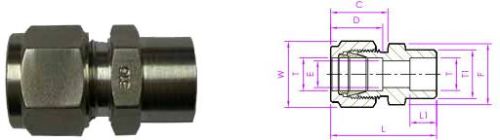

Tubefit tube fittings with weld ends allow you to make tube-to-weld connections. The fittings provide leak-proof seals at the tubing connections. They also eliminate costly, hazardous leaks in instrumentation and process tubing. They permit disassembly in otherwise permanently welded tubing systems.materials include 316/316l stainless steel, steel, brass and aluminium.

Note :

	The E dimension is the minimum opening & fittings of this group may be back drilling to lager id at pipe thread or straight thread end.
	Dimension l, c, d is shown in the finger-tight position.
	Dimensions are for reference only and are subject to change.

Tubefit part no.	Equivalent Part no. Type 1	Equivalent part no Type 2	TUBE ODQT (INCHES)	BODY HEX F	ØT1	C	Ø E	L	NUT HEX W	D	L1
2-TSWUD	-200 - 6 - 2W	2 -2 ZHLW	1/8	7/16	0.31	0.6	0.09	1.14	7/16	0.5	0.25
3-TSWUD	-300 - 6 - 3W	3 -3 ZHLW	3/16	7/16	0.42	0.63	0.12	1.17	1/2	0.54	0.25
4-TSWUD	-400 - 6 - 4W	4 -4 ZHLW	1/4	1/2	0.44	0.7	0.19	1.32	9/16	0.6	0.31
6-TSWUD	-600 - 6 - 6W	6 -6 ZHLW	3/8	5/8	0.62	0.76	0.28	1.48	11/16	0.66	0.38
8-TSWUD	-810 - 6 - 8W	8 -8 ZHLW	1/2	13/16	0.75	0.86	0.41	1.62	7/8	0.9	0.5
10-TSWUD	-1010 - 6 - 10W	10 -10 ZHLW	5/8	15/16	0.92	0.86	0.5	1.65	1	0.96	0.5
12-TSWUD	-1210 - 6 - 12W	12 -12 ZHLW	3/4	1-1/16	1.05	0.86	0.62	1.71	1-1/8	0.96	0.56
16-TSWUD	-1610 - 6 - 16W	16 -16 ZHLW	1	1-3/8	1.31	1.04	0.88	2.07	1-1/2	1.23	0.75
