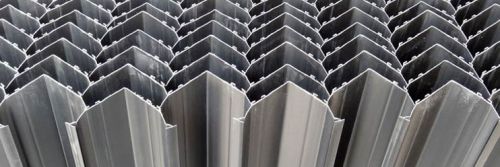

Tube Settler Media

Listing ID #767117

We offer excellent quality Tube Settler Media that is widely applied in areas such as primary settling in wastewater treatment plants (suspended and flocculated solids), secondary (biological solids) settling in wastewater treatment plants, solid-liquid separation in potable and industrial process water treatment plants, anaerobic digesters (restrict loss of solids), ash handling units in thermal power plants, process industry (material recovery from wash/storm water) and oil-water separation. Tube Settler Media that we offer gives a wide cross section area per tube. Even though it provides a slightly lower surface area than Ts60, the profile has advantages when it comes to tube blockage or support constraints. On the other hand, TS120 gives a wide cross section area per tube. Even though it provides a slightly lower surface area than Ts60, the profile has advantages when it comes to tube blockage or support constraints.

Specifications :

• Model TS60

  • Plan Settling Area : 12 m²/m³ (at 60 slope)

  • Cross Sectional Area : 74 x 84.5 mm

  • Hydraulic Radius : 1.28 cm

• Model : TS120

  • Plan Settling Area : 11 m²/m³ ( at 60 slope)

  • Cross Sectional Area : 120 x 44 mm

  • Hydraulic Radius : 1.5 cm
