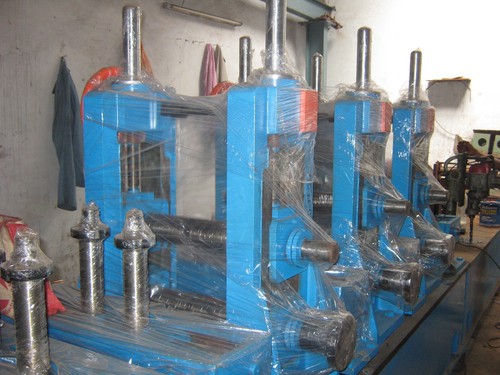

Contact SupplierUTech Rolls Equipments Pvt. Ltd.manufacture high-speed automation continuous running tube mills which are easy to operate, highly-safe to meet the requirements for high-efficiency, labour saving, cost-effctive and to increase the margin for the customer. We offers wide range of tube mills with latest features like quick change mechanisms, helical gear boxes for distribution of power at high efficiencies to individual driven stands, oscillating type OD based cutting tools for long life, inline 19 roll straitner for high degree of straightness, SG cast stands for excellent damping properties. Precesion machined nitrited spindles housed in self aligning bearings, computerised roll setting for side setting (optional). Simultaneous screw down of top spindle. 4 roll driven shaping stands for sectional tubing. Rotary turks heads for precise straightness and roundness. Centralised lubricarion system for mill gear boxes. On line strerch reducing mills for small dia tubes. |
 |
Model No. | Tube Size Range | Tube Thickness | |||
Min. (mm) | Max. (mm) | Min. (mm) | Max. (mm) | ||
UTE 25 TM | 6 | 20 | 0.6 | 2.0 | |
UTE 40 TM | 9 | 32 | 0.7 | 2.8 | |
UTE 50 TM | 12 | 42 | 0.8 | 3.2 | |
UTE 65 TM | 15 | 51 | 1.0 | 4.0 | |
UTE 90 TM-L | 20 | 76 | 1.2 | 4.5 | |
UTE 90 TM | 20 | 90 | 1.2 | 4.0 | |
UTE 115 TM-L | 25 | 90 | 1.6 | 5.4 | |
UTE 115 TM | 25 | 115 | 1.6 | 4.8 | |
UTE 140 TM-L | 32 | 115 | 2.0 | 6.0 | |
UTE 140 TM | 32 | 141 | 2.0 | 5.4 | |
UTE 170 TM | 60 | 168 | 2.5 | 6.5 | |
UTE 220 TM | 75 | 219 | 2.5 | 7.7 | |
UTE 270 TM | 90 | 273 | 3.0 | 9.0 | |
Larger & Smaller diameter mills also available on request. |
