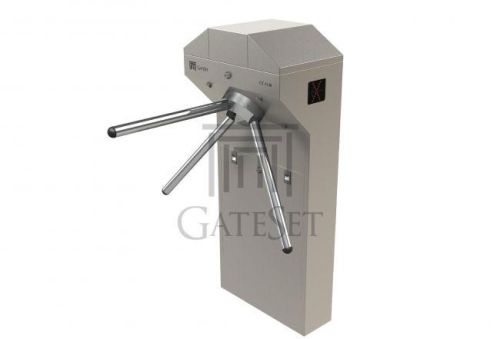

Tripod Turnstile Systems, Certification : ISO 9001:2008, CE

Listing ID #6060960

Get Latest Price

CertificationISO 9001:2008, CE
Warranty2 Years
CAPACITYHandling more than 30 passengers per minute
NOMINAL / MAX. CURRENT250 mA / 850 mA
Supply Type Manufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Certification ISO 9001:2008, CE
Warranty 2 Years
WARNING INDICATORS Two separate warning indicators at front and rear sides of the gate. Green arrow indicates - Passage Open, Red cross indicates - Passage Closed
DESIGN While aesthetic classical case design provides good outlook, its modularity ensures ease of installation and part replacement
OPERATION MODE 6 different operational modes available, programmed by means of software
MATERIAL - ROTATING ARMS 1.5 mm 304 grade stainless steel
POSITION DETECTION Position detection with two separate micro-switches at mechanics
MATERIAL - MAIN BODY 1.5 mm 304 grade stainless steel, satin finishing
ACCESS CONTROL Microprocessor based control for granting access Easy integration with all kind of access control equipment
TREATMENT - OTHER PARTS All other parts are coated against corrosion
NOMINAL / MAX. CURRENT 250 mA / 850 mA
ARM LENGTH (mm) 430
OPERATING TEMPERATURE -20 oC / + 70 oC
OPERATION SAFETY Electrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded
DROP ARM FEATURE Dropping feature at each tripod arm providing ease of site evacuation at the case of emergency, (only at GT-3104 and GT-3144 models)
CAPACITY Handling more than 30 passengers per minute
ELECTRICAL FAILURES Main mechanism released and unlocked automatically. Arms rotates free
POWER CONSUMPTION 30 W
DIMENSIONS (mm) GT-3100 / GT-3104: 280 x 450 x 970 (WxLxH) GT-3140 / GT-3144: 280 x 450 x 1050 (WxLxH)
OPERATING VOLTAGE 115-240 V AC / 24V DC - 50-60 Hz
DIRECTIONAL MODE Unidirectional and Bidirectional operation features as Only Entrance, Only Exit, Entrance and Exit
ROTATION CONTROL Self-centered and smooth operation by means of spring and hydraulic damper

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Turnstiles Systems – Waist height tripods, motorized tripods, antipanic folding arms tripods, VIP swing gates, full height turnstiles, speed gates, flap turnstiles, blade turnstile and hall turnstile. High Security Products - Hydraulic Rising Bollards,Hydraulic Road Blockers, Access Control Equipment – Card readers, fingerprint/biometric readers Parking Systems – Automatic boom barriers, ticket dispensing machines
