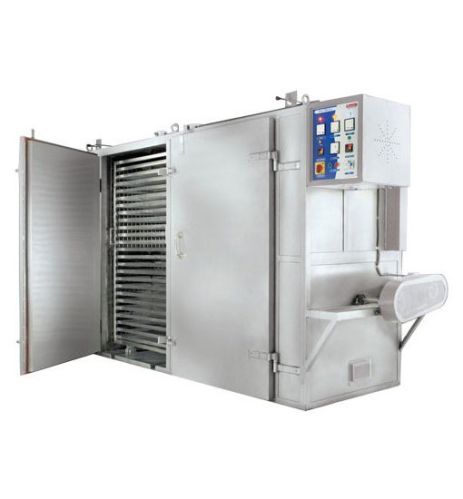

Tray Drier Machine

Tray Drier Machine

Listing ID #4288143

Get Latest Price
  • Supply Type Exporter, Supplier, Retailer
  • Preferred Buyer Location All over the world

Tray Dryer Machines are a type of powder dryer machines that are commonly used in cases where quantity of moisture in the product is more and the materials have to be dried at a low temperature for....
View More Details
Send Enquiry

Company Information

Cemtech Pharma Machinery verified-icon
Vatva, Ahmedabad, Gujarat
View Number
  • Member Since 7 Years
  • Nature of Business Manufacturer
  • GST No. 24AALFC9885C1Z6

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

Tray Dryer Machines are a type of powder dryer machines that are commonly used in cases where quantity of moisture in the product is more and the materials have to be dried at a low temperature for long duration. Our company provides tray dryers in a range of different number of trays, according to the requirement of the product and the industry. Tray dryers can be steam and electrically heated.



Operation: Air Circulation: Air circulation is done by specially designed recirculation blowers inside the dryer. The blower capacity, static & design depends on the size and model of dryer.

Heating: Dryers are normally supplied with either steam/electric/thermic fluid/hot water heating system. Suitable heating coils/calorifiers/controlling unit are provided in the dryers.

Temperature Control: Temp control system is done by electronic digital temp controller fitted in the control panel. The temp control in the dryer is fully automatic.



Features :-

  • Easy dismantling
  • Optimal surface finish
  • Low power consumption

NOTE : Technical details, specification & designs are subject to change without any prior notice.


Model No. CP-TDM-1 CP-TDM-2 CP-TDM-3 CP-TDM-4
Loading capacity 12 Trays 24 Trays 48 Trays 96 Trays
Internal Dimension In mm 840 X 860 X 840 840 X 860 X 840 1020 X 930 X 1830 1960 X 930 X 1830
No of Doors One One One Two
No of Blowers One One One Two
No of motors/H.P.3 PHASE 415 VOLTS. 1/0.5 H.P.3 phase 415 volts 1/0.5 H.P.3 phase 415 volts 1/1 H.P.3 phase 415 volts 2/1 H.P.3 phase 415 volts
Electrical Heating Load for 100/200/300 °C 6 kw/9 kw/12 kw 6 kw/9 kw/12 kw 9 kw/15 kw/18 kw 15 kw/21 kw/27 kw
Steam Heater No. of coils. 2 2 2 2
Steam consumption 45 LBS/hr 45 LBS/hr 60 LBS/hr 80 LBS/hr
Insulation in mm 100/200/300 °C 50/75/75 50/75/75 50/75/75 50/75/75
No of Trolleys Rack System Rack System One Two
Tray Size 812 X 406 X 31 812 X 406 X 31 812 X 406 X 31 812 X 406 X 31
Trolley Dimension Fixed Racks Fixed Racks 840 X 960 X 1780 840 X 960 X 1780
