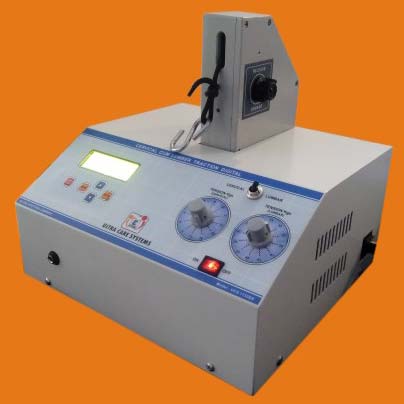

UCS CERVICAL cum LUMBAR TRACTION is a modern electro mechanical system; moulded aluminium gearbox & metal gears give long life & jerk free traction. It is based on solid-state circuitry; it has silent, smooth & powerful motor to pull the appropriate weight, separate traction force selection for CERVICAL & LUMBER. APPLICATION For the treatment of Lumber, Cervical and upper Dorsal Region.

Specification:

• Dimension (l*h*d) 295mm, 325mm, 300mm
• Weight 12 Kg. (approx)
•  Operating Voltage 220v, 50hz
• Absorption 37-watts Max Fuses 500 Ma.
• Room Temperature 10 to 40 °C.
• Moisture 10% to 80%
• Treatment Mode Static / Intermittent
• Traction Force 4 Kg to 45 Kg (with Doubler 90 Kg)
• Cervical 4 Kg to 15 Kg (each One Kg Steps)
• Lumber 23 Kg to 45 Kg (each Two Kg Steps)
• Hold Time 199 Sec. with Lcd Display
• Rest Time 199 Sec. with Lcd Display
• Timer 199 Minutes Patient Safety Available.
