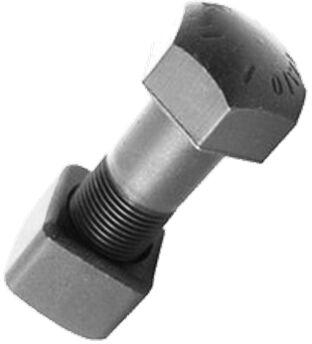

TRACK SHOE BOLT WITH SQUARE NUT

Listing ID #3914362

High Tensile Hexagonal Head fasteners are available in 8.8 and 10.9 grades for Bolts/Screws and grades 8 and 10 for nuts.

These fasteners are available in Metric, BSW, BSF, UNC and UNF threads.

Finishes: Black Phosphated, Zinc plated, Yellow Zinc Plated, Cadmium Plated, Nickel Plated, Chromium Plated and Hot Dip Galvanized.

Size Range

High Tensile Hex Bolts/Screws

• M3 x 10mm to M42 x 400mm generally conforming to IS 1364 (Part 1) -2002 DIN 931 ISO 4014-1999 for Bolts & IS 1364 (Part 2) -2002 DIN 933 ISO 4017 for Screws

• 1/4” x 1/2” to 2” x 12” in BSW and BSF thread generally conforming to BS 1083-1965
• 1/4” x 1/2” to 2” x 12” in UNC & UNF threads generally conforming to BS 1768-1963


High Tensile Nuts

• M4 to M52 generally conforming to IS 1364 (Part 3) -2002

• 1/4” to 2” in BSW and BSF thread generally conforming to BS 1083-1965
• 1/4” to 2” in UNC & UNF threads generally conforming to BS 1768-1963


High Tensile Washers

• M12 to M48 generally conforming to IS 6649-1985


High Tensile Friction Grip Bolts (Structural Bolts)

• M16 X 40 to M30 x 200 generally conforming to IS 3757 -1985 for Bolts and IS 6623-2004 for Nuts


Track Shoe Bolts with Square Nuts

• 5/8”UNF x 2 1/4”
• 3/4”UNF x 2 3/8”
• 7/8”UNF x 2 5/8”

Prevailing Torque Type Nuts with Nylon insert (Nyloc Nuts)

• M3 to M48 generally conforming to IS 7002 - 2005

• 3/16” to 2” in BSW, UNC, UNF and BSF

EN-8 Threaded Rod

• M10 to M24

Disk-Lock Washers

M10 to M24
