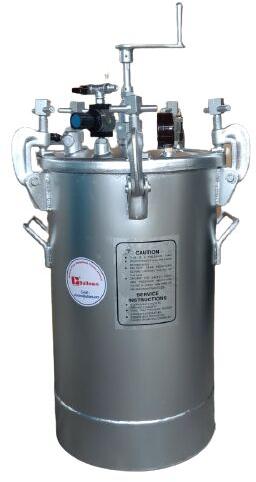

Contact SupplierTrio-make 45 ltr Pressure feed tank made of MS & SS-304 material (optional) highly accepted by customer in various industries due to its durability and easy operation.
The tank contains an Air Regulator, Pressure Gauge, Safety Valve, Fluid cut off Ball Valve, Fluid Tube with Suction Strainer & as paint is a homogeneous mixture of various solid & liquid parts, to maintain its mixture uniformity a stirrer is provided (manual or auto) options available.
Where substantial quantities of any one material are used, it is recommended that Pressure Feed Containers should always be used instead of gravity cup which helps in considerable saving of time and paint as well as greater uniformity of finish.
Sr. No. | Particular | Unit |
---|---|---|
1 | MOC | SS/MS |
2 | Thickness of Tank | 3 mm |
3 | Maximum Working Pressure | 4 Bar |
4 | Operating pressure range | 2 to 4 Bar |
5 | Diameter | 380 MM |
6 | Height | 610 MM |
7 | Fluid outlet | 3/8” BSP (M) |
8 | Air inlet | 1⁄4” BSP (M) |
