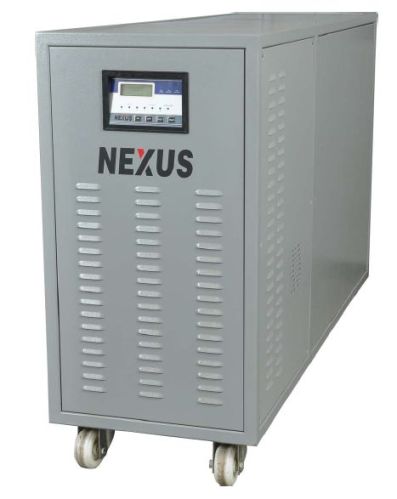

Contact SupplierAbility to Work with all Loads - An obvious choice for IT applications, the heavy duty design of the HF Series also works equally well with other loads such as motor driven loads, medical equipment, communication products which are often damaged by inferior UPSs with step wave or square Wave output. The rugged Nexus HF Series Online UPS systems are designed to perform in the most hostile of Indian Power conditions.
Generator Compatible : As a series designed for Indian conditions, the HF Series UPSs also score over most other systems in the market, affording high compatibility with most types of generators.
Hot Stand-by Mode : In rare instances where the primary UPS system goes out of order the standby UPS instantly takes on the connected load without transferring to bypass. This configuration is available on selected models at an additional cost.
Features :
Application :
Input Voltage | Three Phase |
Voltage range | 340 to 460V |
Frequency | 45-55 Hz |
Inverter | |
Output Wave Form | Pure Sine Wave |
Output voltage | 220V |
Output voltage regulation | +/- 1% |
Output Frequency | 50Hz +/- 0.01% |
Output Isolation | Galvanic Isolation |
Power Factor | 0.8 to unity (0.9 optional upto 30KVA with extra charges) |
THD | Less than 3% |
Technology | Micro controller based Hi Freq. PWM |
Overload Capacity | 110% for 10 Min. |
Crest Factor | 0.17 |
Transient Recovery | Within 3 cycle |
Battery Charger | |
Charger Type | Constant Voltage Constant Current |
Charging Mode | Trickle, Float & Boost |
Operating Conditions | |
Operating Temperature | 0-45oC |
Humidity | 90% Non Condensing |
Noise Level | Less than 45dB |
Response Time | |
Transfer Time | 0 ms |
Dimensions (mm) (L x W x H) | |
10 - 30KVA | 615 x 460 x 910 |
40KVA | 895 x 460 x 910 |
Note : Due to continuous product development, specifications are subject to change without prior notice.
