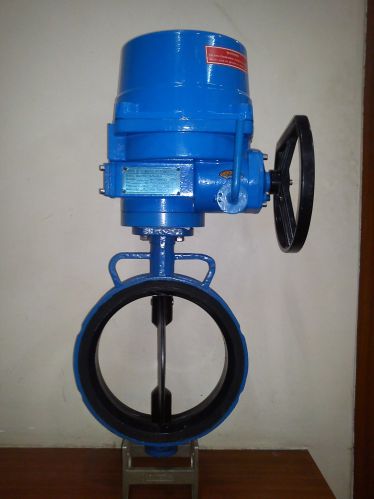

Contact Supplier"cair" manufactures on – off duty 415v ac three phase quarter turn rotary electrical actuator operated wafer type rubber lined butterfly valve for water and air application.
electrical actuator details:
manufacturer: cair euromatic automation
brand: cair
model: atq basic
characteristic: on – off type
travel: quarter turn rotary 90 degree
power supply: 415v ac
housing: aluminium die cast
cover: aluminium die cast
enclosure: ip 67 weather proof actuator
torque switches: provided
limit switches: provided
stall protection: built-in thermal protection
position indicator: continuous needle type position indicator
manual override: wheel type
various options:
• on - off basic type
• on - off with integral starter unit
• modulating type
• modulating type with integral starter unit
• potentiometer feedback
• with panel mounted starter unit controller
butterfly valve details:
valve design: wafer type butterfly valve
body: cast iron / ductile iron / wcb / ss 304 / ss 316
disc: cast iron / ductile iron / wcb / ss 304 / ss 316
stem: aisi ss 304 / aisi ss 316
seat: nitrile / epdm / ptfe / viton / gft
ends: wafer to suit 150#
working pressure: up to 10 kg/cm²
