• Chrome coated cylinders are machined with 0,001 mm precision and pistons are specially hardened.
• Original clamps are user friendly and machined with high precision.
• Front support arms are slideable along machine length and easy to adjust.
• Compact and well-known brand Bosch-Rexroth hydraulics are produced according to CE standards.
• CNC press brake adopt wwo photocells on sides for rear guard.
• Fast tool tightening.
• Optic linear scales are sensitive up to ± 0,01 mm.
• Synchronized working cylinders will give you the best bending result with its perfect repeatability ratio.
• 2 axis ultra strong backgauge system (X=800 mm and R), with ± 0,01 mm. repeatability, moves along rails and ball screw, bending length controlled by CNC controller, foldable back gauge fingers for reverse bending applications.

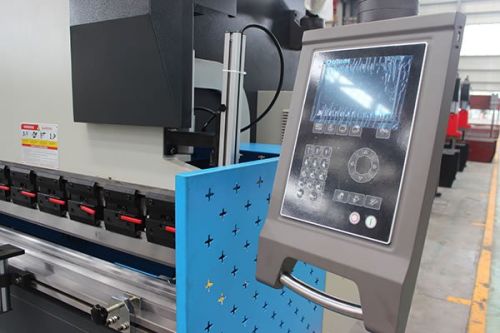

• Multifunctional and highly programmable, DELEM DA52S CNC controller.
• The metalworking machinery uses SIEMENS electrical system.
• Automatic axis referencing when machine is turned on.
• Side guard is standard meeting CE regulations.

• This CNC hydraulic press brake has perfect configuration for sensitive bending and economic solutions.
• Precise results for long and deep bends.
• Continuous sensitivity with crowning system.
• Long lasting rigid body is also suitable for heavy duty applications.
• Easy maintenance.

You can bend longer and deeper parts with maximum repeatability with standard DISHAA machines.

• Height adjustable and movable sliding front support arms.
• Top and bottom tools are surface hardened by special treatment.
• Promecam easy clamping system.
• Delem DA52s CNC controller.
• CNC controlled strong X=800 mm back gauge
• 410 mm throat depth.
• 2 back gauge fingers
• Scales in metric and inches.
• Crowning system in bottom beam 2500/…/4100 hydraulic crowning and from 600 tn and above motorized crowning is standard.
• Foot pedal is produced according to CE standards and suitable for single and multiple bends.
• 2 photocells are placed facing each other for rear guards.
• Covers for cylinders and top beam
• Preadjusted electrical requirements based on customer’s geographical area.

• Numerical, one page programming
• Quick, one-page programming
• Hotkey navigation
• 6,4″ VGA colour LCD (TFT)
• Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
• Crowning control
• Tool/material/product library
• USB, memory stick interfacing
• Servo, frequency inverter and AC control for backgauge axes.
• Advanced Y-axis control algorithms for closed loop as well as open loop valves
