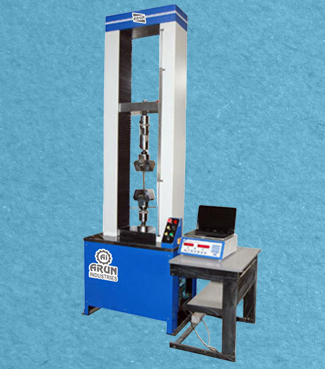

Tensile Testing Machines - Computerized / Digital

Listing ID #4212439

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are Manufacturer, Supplier, Exporter of all our product range and our setup is situated in Kolhapur ( Maharashtra, India ) Features These models are suitable for testing metals and iron,....

View More Details

Send Enquiry

Product Details

We are Manufacturer, Supplier, Exporter of all our product range and our setup is situated in Kolhapur ( Maharashtra, India )

Features

These models are suitable for testing metals and iron, Plastics, Rubber, Ceramics, Fabrics, Composites, Cables and wires.
Load is measured through a strain gauge based Load Cell and elongation is through rotary encoder.
Depending upon the customerâ€™s requirement a suitable type of grips are available. Extra Load cell can be offered suitable for low load samples.

Software Features

Menu driven form system with color graphs to compare sample test results.
Test details and reports are stored in database
User programmable master test templates
User can select test from master test Templates and can start similar test
Load and Elongation is continuously displayed on screen
Overload protection for machine by electronic control
Tare Load and Reset Elongation facility available
User selectable sample break detect condition
Load rate and strain rate are also displayed while testing
Unlimited Load rate and strain rate control steps
With Load rate controller, user can hold the load on specimen for unlimited time
With Load rate control, user can specify positive or negative Rate of Loading
User selectable units for load and displacement (kg, kN, N, Ibf, mm, cm, inch etc.) Results and graphs are automatically displayed accordingly.
On line display of Load and Displacement (Stress, Extension, Strain) etc. while test is conducted
Provision of auto zeroing of Elongation at preload set by user
User Programmable Reports. User can select Header, Footer, Specimen information, Dimensions, Test information, Test results, Stastical analysis as per his need.
Generated reports can be exported to PDF file and can be e-mailed
If electronic extensometer is used then proof stress values from 0.1% to 1% can be determined
Software will give alert to user to remove extensometer when load crosses .2% of Gauge length selected then proof load value is calculated. (With extensometer)
Separate graph of extensometer and encoder is displayed
Provision of calculation of Load and Elongation at yield, Peak load and Load at break, Yield stress, Ultimate stress etc.
Special software for tensile, compression, bend, TOR steel and other test software as per customer requirements

Technical Specification of Tensile Testing Machine

Max. Capacity	2500N	5000N	10 kN	25kN	50 kN
Measuring range	0-2500N	0-5000N	0-10kN	0-25kN	0-50kN
ranges Least	0.125 N	0.25N	0.5 N	1.25N	2.5N
Counts
Elongation Scale	0.01 mm	0.01mm	0.01 mm	0.01mm	0.01mm
L.C.
Grip separation without Grip : Min Max	25 mm 750 mm			25 mm 600 mm
variable speed drive stepless variation	5 to 300 mm/min
H.P. (for standard speed)	1 Hp			2hp
Supply	3 Phase, 415Volts, 50Hz AC
Over travel Safety	Provided with each model
