Electric Tensile Testing Machine

Listing ID #3803029

3 Lakh - 12 Lakh / Set

Get Latest Price

MOQ 1 Set(s)
PowerElectric
Warranty18 Months
Power supply220v 50/60HZ
Speed Range0.1-500mm/min (adjustable )
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

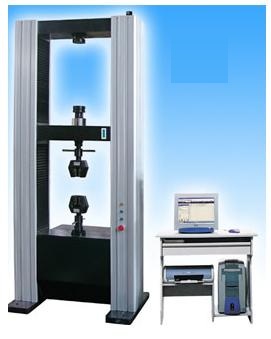

SSS make TNE series machines are electronic screw driven machines with precision screw and column construction and variable speed drive. These are high precision, high performance universal testing machines, maximum capacity up to 100 kN. With the help to computer and micro-computer, all the operations from control of load to processing of data are carried out with excellent performance, reliability, flexibility and easy operation.
The machines are suitable for studying mechanical behavior of various materials like iron and metals, rubbers, plastics, ceramics, fabrics, composites, cables and wires. As a matter of fact, it is an indispensable instrument for the modern industries. Two options are available mainly acme threaded screw with DC motor drive and ball lead screw with servo drive. The machines confirm to IS, BS & ASTM standards.
Machine Features :

Computer controlled mechanism under windows 2000/XP
Variable speed drive with DC / AC servo drive options.
Automatic identification and interchangeability of load cells.
Different clamping devices to suit specific test requirement.
Safety interlock by end limit switches and by overload sensing.

TNE Series : Depending upon test requirements and budget, TNE series machines are available with following options.
DRIVE - DD : DC motor with thyrister drive to give speed ratio of 1:10 as standard and 1:100 as optional.
DRIVE - SD : Servo motor & PWM drive to give speed ratio of 1:1000.
Economical Models : These machines are with a rigid, stable structure with high stiffness, two columns and a single screw. Machine uses three phase induction motor with fixed speed as standard. A variable speed drive is available as option.
Load Cells :
Universal load cells of following capacities are available. - 50N, 100N, 250N, 500N. 1kN, 2.5kN, 5kN, 10kN, 25kN, 50kN, 100kN. Any other load cell as per requirement.
Grips and Clamping Device :

Wedge type grips for flat / round specimen.
Compression plate.
Special grips as per requirement.
Vise type grips.
Bending fixture.
Shear attachment.

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Clilck For More Details

Download Detail File : Click Here

Company Details

Established in the year 2009 at ichalakaranji, (maharashtra, india), we 's s s instruments' are engaged in manufacturing, exporting and supplying of high quality industrial and engineering instruments like universal testing machine, computerized universal testing machine, brinell hardness testing machine, vickers hardness testing machine, computerized vickers hardness tester, rockwell hardness tester, digital rockwell hardness tester, mechanical extensometer, electronic extensometer, pendulum impact testing machine, digital impact testing machine, electronic material testing machine, torsion testing machine, tensile testing machine, spring testing machine and fatigue testing machine. Our highly reliable products are immensely used in the steel industry, rolling mill, aluminium industry, forging company, any industry, technical educational institutes, universities, engineering colleges, industrial laboratory, plastic industry, rubber industry, textile industry, construction industry and every manufacturing company suppose to be have testing machines to test their products and oil industry. S s s (triple s) supply our products as per the is, bs, en, din and astm standards.
these products are designed by our team of skilled professionals, as per the rules and regulation of the international standards. We pay utmost importance to the quality of the products, thereby we not only make use of finest raw material during the manufacturing process, but also check the final range on various checking parameters.
