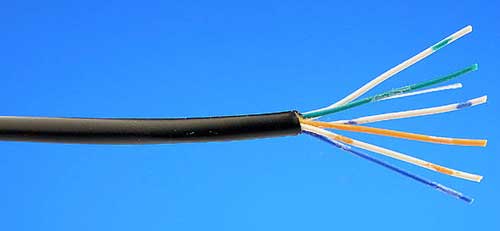

Telephone Cable

Listing ID #1993404

We are recognized as the most dependable Telecom Cables Manufacturer in India. The unmatched quality and inexplicable performance in the respective applications has attracted various national as well as international clients to place huge and repeated orders. Additionally, the materials used in the manufacturing of the Telecommunication Cables are of optimum quality that ensures high durability, conductivity and resistivity to various unfavorable conditions. Customers are also facilitated with the availability of the Telecommunication Cables in varied sizes, lengths and diameters so as to meet the specific requirements. OrientCab Telecommunication Cables Conductor : Annealed High Conductivity, uniform coated with Tin, Electrolytic Grade Solid Conductor conforming to IS:8130:1984 of diameter 0.5mm, 0.6mm & O.7mm. Insulation : Specially formulated high grade of PVC Compound as per Type 2 of IS :13176 : 1991 Hard grade and capable of withstanding higher conductor temperature upto 70 degree C. Colour of Insulation are as per Table 2 of G/WIR 06/02 and colour sheds are conforming to IS:9938. Pairing : Two cores are uniformly twisted together to form a pair with maximum lay length 80 mm. The lay shall be so chosen as to minimize cross talk in the cable. Laying of Pairs : The Layers in cables containing 63 Wires or less shall be stranded with a suitable left hand lay. The Stranding lay of all other cable cores shall be alternate. The cable shall be wrapped with polyester tape. Rip Cord : A non-metallic such as nylon suitable rip cord shall be laid up longitudinally under the sheath for effective means of slitting the sheath longitudinally to facilitate removal. Sheath : The Laid up of pairs are covered with PVC Compound as per Type TM2 of IS:13176:1991 of Grey colour. The sheath shall be uniform and tightly fitted of overall diameter as under.
