Teflon Bellow Seal

Listing ID #4366942

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

Teflon Bellow Seal ATB/G-1/C-2/S-3. Standard Style: Face Materials : GFT / Ceramic, Silicon Carbide / Ceramic, Carbon / Ceramic, Silicon Carbide / Silicon Carbide Metal Parts : SS 316, SS 304,....
View More Details
Send Enquiry

Company Information

  • Member Since 12 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

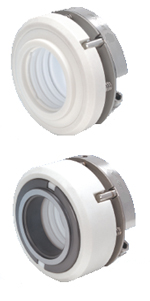

Teflon Bellow Seal ATB/G-1/C-2/S-3.
Standard Style:
Face Materials : GFT / Ceramic,
Silicon Carbide / Ceramic,
Carbon / Ceramic, Silicon Carbide / Silicon Carbide
Metal Parts : SS 316, SS 304, Hast-C
Springs : SS-316, Hast-C, Alloy 20
Bellows: PTFE

Applications:
  • Highly corrosive liquids.
Seal Characteristics:
  • Single acting
  • Inherently Balanced
  • Inside Mounted
  • Independent of direction of rotation
  • Welded Metal Bellows
Operating Limits:
Shaft Diameter : 18 .....100mm
Pressure : 6 bar (max)
Temperature t : -45 ....+80C
Velocity : 20 m/sec
Type ATB/G-1 are designed for designed to handle highly corrosive liquids. These seals are outside mounted with simple installation procedures, In this seal type Glass filled PTFE face is composite molded with highly flexible PTFE bellows. Best performance in acids, alkalis & extremely corrosive services material. Type ATB/C-2 Best designated as Fixed & replaceable bellow face respectively. Type ATB/C-2 gives flexibility for selection of face material as per the application to be sealed
Type ATB/S-3 Best designated as Fixed & replaceable bellow face respectively. Type ATB/C-2 gives flexibility for selection of face material as per the application to be sealed. Best performance in acids, alkalis & extremely corrosive services material.


Company Details close-icon

ASHELY ENGINEERING: is a experienced technocrats having technically sound knowledge of ultra modern technology in the field of MECHANICAL SEALS, We specialize in manufacturing of single spring mechanical seal, multi spring mechanical seal, single & double mechanical seal, Metal bellow / Teflon bellow / Rubber bellow mechanical seal, balance & unbalanced, back to back…We are now equipped with sufficient stock of mechanical seal spares which can be delivered for all popular models working in our country.
ASHELY ENGINEERING: supply Pump Seals, Compressor Seals, Agitator Seals for SS & GLR of all face combination i.e. Carbon, Silicon Carbide, Ceramic, Tungsten Carbide, Hast 'C', GFT etc. We have supplied & serviced user industry Bulk Drug, Chemical, Vegetable Oil, Refineries, Fertilizers, and Pharmaceutical etc, our products are qualitatively superior, continuously improved, highly reliable and give a trouble free performance for a longer duration….
Quality Control: We have absolutely the latest in technology for the manufacturing of our products. Our fully equipped separate quality control department ensures that all products manufactured are of International quality standards. Continuous and stringent inspections are undertaken at each and every stage of production.
Commitment: We strongly believe in quality management. Our commitment to timely deliveries, quality management and competitive pricing is unmatched, thereby keeping you always one step ahead of your competitors.
