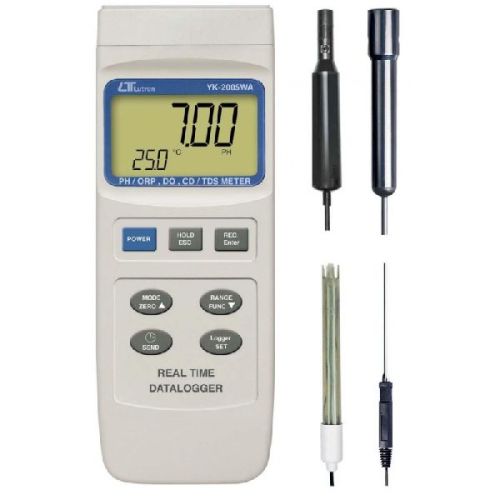

Lutron YK-2005WA is a one meter for multi purpose operation which measures PH/ORP, DO & CD/TDS whose ranges are pH : 0 to 14.00 pH, ORP : 1999 mV, Conductivity : 200 uS/2 mS/20 mS/200 mS, Dissolved oxygen : 0 to 20.0 mg/L.
Applications: Used for oxidation/reduction measurement in plating baths, waste water monitoring and other applications such as Aquarium, Beverage, Fish Hatcheries, Food Processing, Laboratory and Quality Control.
Lutron YK-2005WA has an option of automatic temperature compensation and real time data logger which records 16,000 data (year, month,date, hour, minute, second).
Technical Specifications:
|
PH/mV
|
|||
|
Measurement
|
Range
|
Resolution
|
Accuracy
|
|
PH
|
0 to 14 PH
|
0.01 PH
|
+/- (0.02 PH + 2d)
|
|
mV
|
0 to 1999 mV
|
1 mV
|
± (0.5% + 2 d)
|
|
Conductivity ( uS, mS )
|
|||
|
Range
|
Measurement
|
Resolution
|
Accuracy
|
|
200 uS
|
0 to 200.0 uS
|
0.1 uS
|
± (2% F.S.+1d)
F.S. - Full scale
|
|
2 mS
|
0.2 to 2.000 mS
|
0.001 mS
|
|
|
20 mS
|
2 to 20.00 mS
|
0.01 mS
|
|
|
200 mS
|
20 to 200.0 mS
|
0.1 mS
|
|
|
*Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* The accuracy is specified under measurement value ≦ 100 mS.
* mS - milli Simens * @ 23± 5℃
|
|||
|
Oxygen/Dissolved Oxygen
|
|||
|
Measurement
|
Range
|
Resolution
|
Accuracy
|
|
DO
|
0 to 20.0 mg/L
|
0.1 mg/L
|
± 0.4 mg/L
|
|
O2
|
0 to 100.0 %
|
0.1 % O2
|
± 0.7% O2
|
|
TDS ( Total Dissolved Solids )
|
|||
|
Range
|
Measurement
|
Resolution
|
Accuracy
|
|
200 PPM
|
0 to 132 PPM
|
0.1 PPM
|
± (2% F.S.+1d)
F.S. - Full scale
|
|
2,000 PPM
|
132 to 1,320 PPM
|
1 PPM
|
|
|
20,000 PPM
|
1,320 to 13,200 PPM
|
10 PPM
|
|
|
200,000 PPM
|
13,200 to 132,000 PPM
|
100 PPM
|
|
|
*Temperature Compensation : Automatic from 0 to 60 ℃ ( 32 - 140 ℉ ), with temperature compensation factor variable between 0 to 5.0% per C.
* The accuracy is specified under measurement value ≦ 66,000 PPM
|
|||
