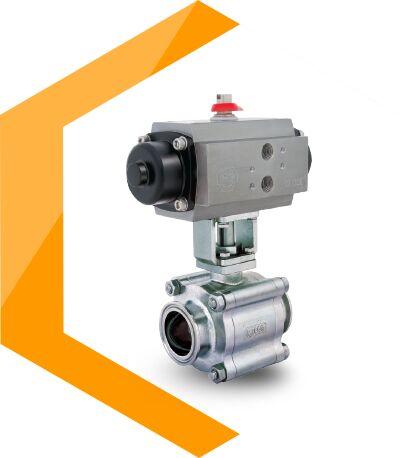

Designed and manufactured as per GMP Norms and ISO 2852.
Mainly used in Pharmaceuticals, Food and Beverage Industries. Ease to separate from pipe line to flush out periodically.
Valve surface roughness achieved with electro polish and a series of grit polish.
Mounting InterfaceISO 5211
MOC of the BodyCF8, CF8M, CF3, CF3M (Electro polished and internal surface Buffed )
TrimCF8, CF8M, CF3 CF3M (Mirror Polished)
SeatPTFE
Size½”to 6”
Pressure RatingPN 10
ConstructionFB, 3 piece
